Product Number: 7834BNC

Category 6+ Cable, 4 Bonded-Pairs, U/UTP, LSZH Jkt, Indoor

Name: Belden 7834BNC
Brand: Belden
SKU: 7834BNC

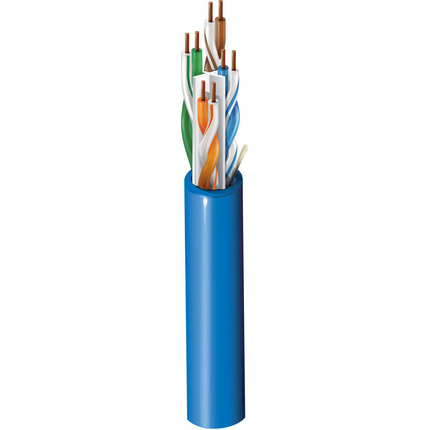

Category 6+ Premise Horizontal Cable (650MHz), 4 Bonded-Pairs, 23 AWG Solid Bare Copper Conductors, U/UTP, LSZH Jacket, Indoor

Ships from and sold by A5 IT.

Part numbers

7834BNC is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	Order
7834BNC 006A1000	Blue	Reel in Box	1,000 ft	Order online
7834BNC 006U1000	Blue	Unreel	1,000 ft	Order online
7834BNC 008U1000	Gray	Unreel	1,000 ft	Order online
7834BNC 008A1000	Gray	Reel in Box	1,000 ft	Order online

Suitable Applications	Horizontal and building backbone cable; Support current and future Category 6 and 5e applications, such as: 1000Base - T (Gigabit Ethernet), 100 Base - T, 10Base - T, FDDI, ATM

Bonded-Pair	Yes

Material	PE - Polyethylene
Nom. Insulation Diameter	1.15 mm (0.0453 in)
Color Code	Blue & White with Blue Strip, Orange & White with Orange Strip, Green & White with Green Strip, Brown & White with Brown Strip

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	6.3 mm (0.25 in)

High Frequency Table Notes	The cable performance between 1 MHz and 4 MHz,Frequency range exceeding 250MHz is achieved by design only and it is therefore not necessary to test for this performance below 4 MHz. Reference standard: ISO/IEC 61156-5ed. 2.0 (2009)The value of transmission performance is typical.

Max. Conductor DCR	95 Ohm/km (29 Ohm/1000ft)
Max. Mutual Capacitance	56 pF/m (17 pF/ft)
Max. Capacitance Unbalance	160 pF/100m
Nom. Characteristic Impedance	100 Ohm

Max. Delay Skew	40 ns/100m
Nom. Velocity of Prop.	67%

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.0	80.3	78.3	78.3	76.3	74	71	23	40	35
4	3.7	71.3	69.3	67.6	65.6	62	59	26	34	23
10	5.7	65.3	63.3	59.6	57.6	54	51	28	30	15
16	7.2	62.2	60.2	55.0	53.0	49.9	46.9	28	28	10.9
31.3	10.2	57.9	55.9	47.7	45.7	44.1	41.1	26.6	25.1	5.1
62.5	14.6	53.4	51.4	38.8	36.8	38.1	35.1	24.5	22
100	18.8	50.3	48.3	31.5	29.5	34	31	23.1	20
125	21.2	48.8	46.8	27.6	25.6	32.1	29.1	22.4	19
200	27.4	45.8	43.8	18.4	16.4	28	25	21	17
250	31.1	44.3	42.3	13.2	11.2	26	23	20.3	16
350	37.6	42.1	40.1			23.1	20.1	19.3
500	46.3	39.8	37.8			20	17	19.3
650	54.0	38.1	36.1			17.7	14.7	19.3

Bulk Cable Weight	46 kg/km (31 lbs/1000ft)

Operating	-30°C To +60°C

Installation Min.	8*D

Flammability / Reaction to Fire	IEC 60332-1-2, IEC 60332-3-22
ISO/IEC Compliance	IEC 61156-5, ISO/IEC 11801
CENELEC Compliance	EN 50173-1
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = HCL+HBr ≤ 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

Update and Revision	Revision Number: 0.26 Revision Date: 02-20-2026
Footnote	*Ordering stock code will be created at the time of placing the order and the stock code will include cable part code, outer jacket color & putup length.
