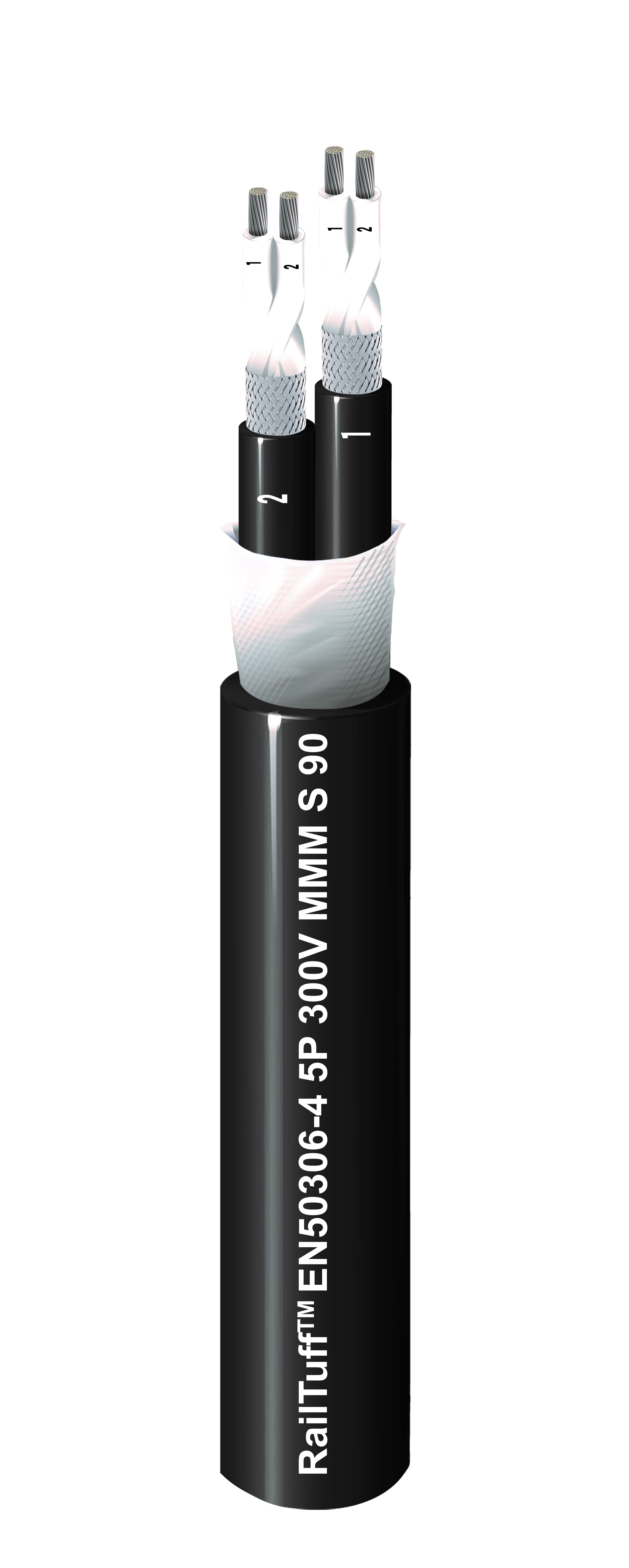

RailTuffTM Thin wall cable EN 50306-4 5P 300V 2Pr 0.5 mm2 Str TC, XLPO Ins, TCBS, XLPO Inner Jkt, XLPO Outer Jkt
RailTuffTM Thin wall cable EN 50306-4 5P 300V 2 Pair 0.5 mm2 Stranded Tinned Copper, XLPO Insulation, Tinned Copper Braid Shield, XLPO Inner Jacket, XLPO Outer Jacket
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc |
|---|
Construction Details
| Inner Jacket Table Notes | Black with continuous numbers 1,2,3 ... or as per customer order |
|---|---|
| Overall Cable Diameter (Nominal) | 9.9 ± 0.25 mm |
Conductor
| Size | 0.5 mm2 |
|---|---|
| Stranding | 19x0.18 mm |
| Material | TC - Tinned Copper |
Insulation
| Material | XLP, XLPO, XLPE |
|---|---|
| Nom. Thickness | 0.29 mm (0.011 in) |
| Nom. Insulation Diameter | 1.42 mm (0.0559 in) |
| Color Code | White with continuous numbers 1 & 2 or as per customer order |
Inner Shield
| Shield Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage | 80% |
Inner Jacket
| Material | XLP, XLPO, XLPE |
|---|---|
| Nom. Thickness | 0.41 mm (0.016 in) |
| Nom. Diameter | 4.10 mm (0.161 in) |
Outer Jacket
| Nom. Thickness | 0.78 mm (0.031 in) |
|---|---|
| Nom. Diameter | 9.90 mm (0.390 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 40.1 Ohm/km (12.2 Ohm/1000ft) |
|---|
Voltage
| Breakdown Voltage | 2.5kVac/5min |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 91 kg/km (61 lbs/1000ft) |
|---|
Temperature
| Operating | -40°C to +120°C |
|---|
Bend Radius
| Stationary Min. | 99 mm (3.9 in) |
|---|---|
| Installation Min. | 99 mm (3.9 in) |
Standards and Compliance
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-2-25 |
|---|---|
| ISO/IEC Compliance | IEC 60228 |
| CENELEC Compliance | EN 50306-4, EN 45545-2 |
| European Halogen Free Standards | IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 70% |
| Other Standard Compliance(s) | TJ/CL 313 |
Product Notes
| Notes | EMEA PN: RTE2P05P; Table 5 Category MMM, ROHS Compliant |
|---|
History
| Update and Revision | Revision Number: 0.51 Revision Date: 06-17-2026 |
|---|
