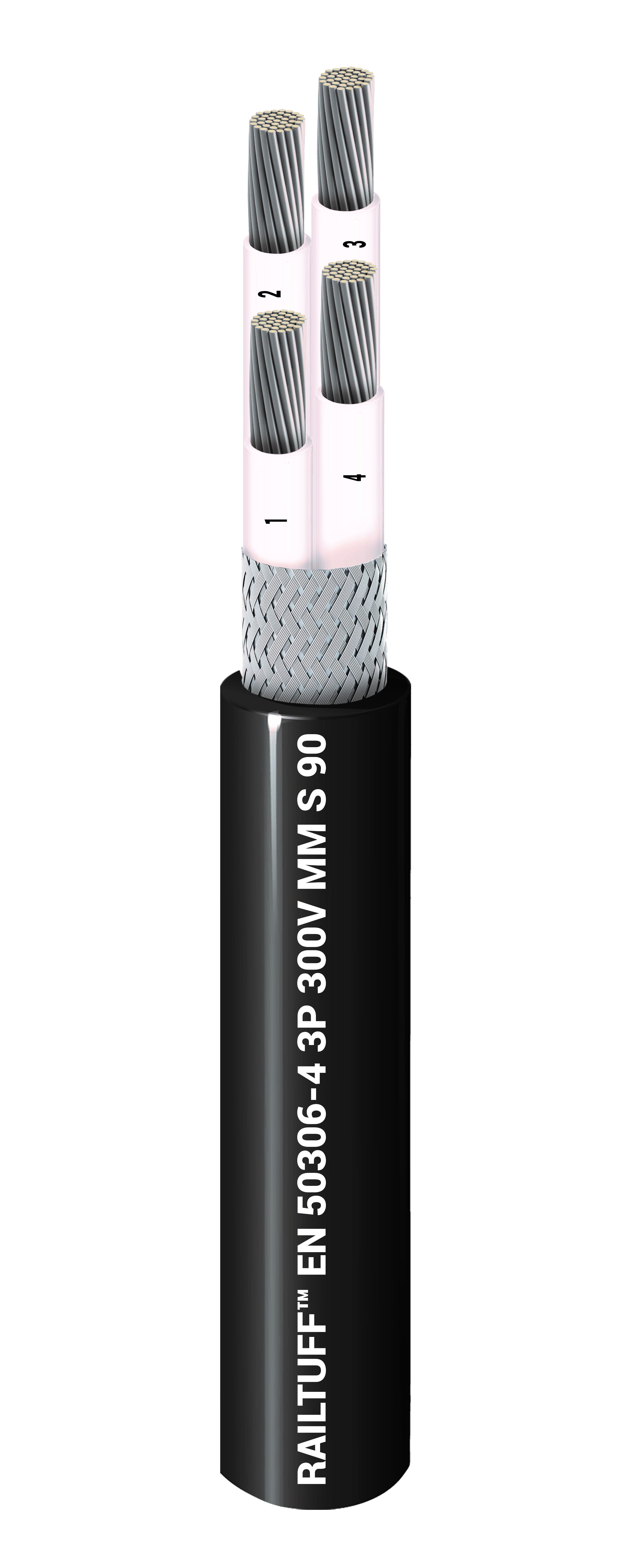

RailTuffTM Thin wall cable EN 50306-4 3P 300V 4 C 0.5 mm2 Str TC, XLPO Ins, XLPO Outer Jkt
RailTuffTM Thin wall cable EN 50306-4 3P 300V 4 Cores 0.5 mm2 Stranded Tinned Copper, XLPO Insulation, XLPO Outer Jacket
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc |
|---|
Construction Details
| Insulation Table Notes | D.C. stability on insulation at 300Vdc in 3% NaCl solution at (85±2)°C for 240h : No breakdown |
|---|---|
| Overall Cable Diameter (Nominal) | 5.3 ± 0.20 mm |
Conductor
| Size | 0.5 mm2 |
|---|---|
| Stranding | 19x0.18 mm |
| Material | TC - Tinned Copper |
Insulation
| Material | XLP, XLPO, XLPE |
|---|---|
| Nom. Insulation Diameter | 1.42 mm (0.0559 in) |
| Color Code | White#1, White#2, White#3, White#4 |
| Notes | D.C. stability on insulation at 300Vdc in 3% NaCl solution at (85±2)°C for 240h : No breakdown |
Outer Shield
| Shield Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage | 80% |
Outer Jacket
| Material | XLP, XLPO, XLPE |
|---|---|
| Nom. Thickness | 0.42 mm (0.017 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 40.1 Ohm/km (12.2 Ohm/1000ft) |
|---|
Voltage
| Breakdown Voltage | 2.5kVac/5min |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 51.6 kg/km (34.7 lbs/1000ft) |
|---|
Temperature
| Operating | -40°C to +120°C |
|---|
Bend Radius
| Stationary Min. | 53 mm (2.1 in) |
|---|---|
| Installation Min. | 53 mm (2.1 in) |
Standards and Compliance
| Flammability / Reaction to Fire | IEC 60332-1-2 |
|---|---|
| ISO/IEC Compliance | IEC 60228 |
| CENELEC Compliance | EN 50306-4, EN 45545-2 |
| European Halogen Free Standards | IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 70% |
| Other Standard Compliance(s) | TJ/CL 313 |
Product Notes
| Notes | EMEA PN: RTD4C05P; Table 3 Category MM, ROHS Compliant |
|---|
History
| Update and Revision | Revision Number: 0.38 Revision Date: 07-12-2024 |
|---|
