DMX Lighting Cable, 4 Cond, 24 AWG Stranded TC

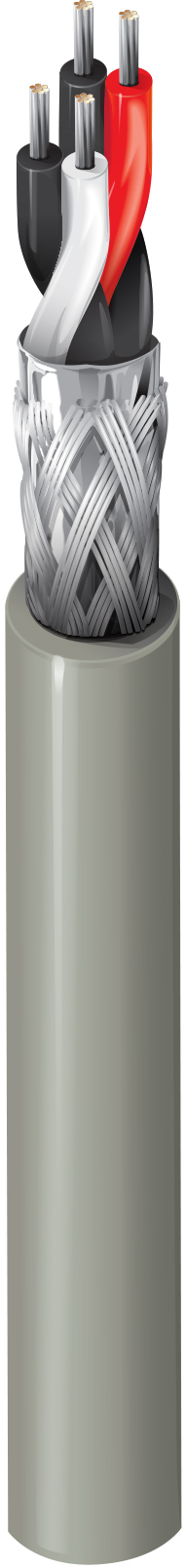

Gepco a Belden Brand, Flexible DMX512 Lighting Control Cable, 4 Conductor 24 AWG (7x32) stranded tinned copper, Foam PE insulation, foil shield plus 90% TC braid with 24 AWG stranded TC drain wire, all weather TPE jacket.
- Availability
- Americas
- Status
- Active
- Orderable items
- 1
Part numbers
DLC224 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| DLC224.41 | Black | Reel | 1,000 ft | 612825391241 | Order online |
Specifications
Product Overview
| Suitable Applications | RS-485, DMX-512 |
|---|
Construction Details
Conductor
| Size | 24 |
|---|---|
| Stranding | 7x32 |
| Material | TC - Tinned Copper |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Thickness | 0.022 in (0.56 mm) |
| Color Code | Black, White, Red, Blue |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 90% |
Outer Jacket
| Material | TPE - Thermoplastic Elastomer |
|---|---|
| Nom. Thickness | 0.042 in (1.1 mm) |
| Nom. Diameter | 0.27 in |
Electrical Characteristics
| Nom Outer Shield DCR | 2.2 Ohm/1000ft (7.2 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 24 Ohm/1000ft (79 Ohm/km) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 10.4 pF/ft (34.1 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 18.7 pF/ft (61.4 pF/m) |
| Nom. Characteristic Impedence | 120 Ohm |
| Nom. Delay | 1.54 ns/ft |
| Nom. Velocity of Prop. | 66% |
| Max. Current | 2.1 Amps per Conductor at 25oC |
High Frequency (Nominal/Typical)
| Frequency [MHz] | 1 |
|---|---|
| Nom. Insertion Loss (Attenuation) [dB/100m] | 0.6 |
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Mechanical Characteristics
| Max. Pull Tension | 87 lbs (39 kg) |
|---|---|
| Bulk Cable Weight | 49 lbs/1000ft (73 kg/km) |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -30°C To +80°C |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor |
|---|---|
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.134 Revision Date: 09-07-2025 |
|---|
