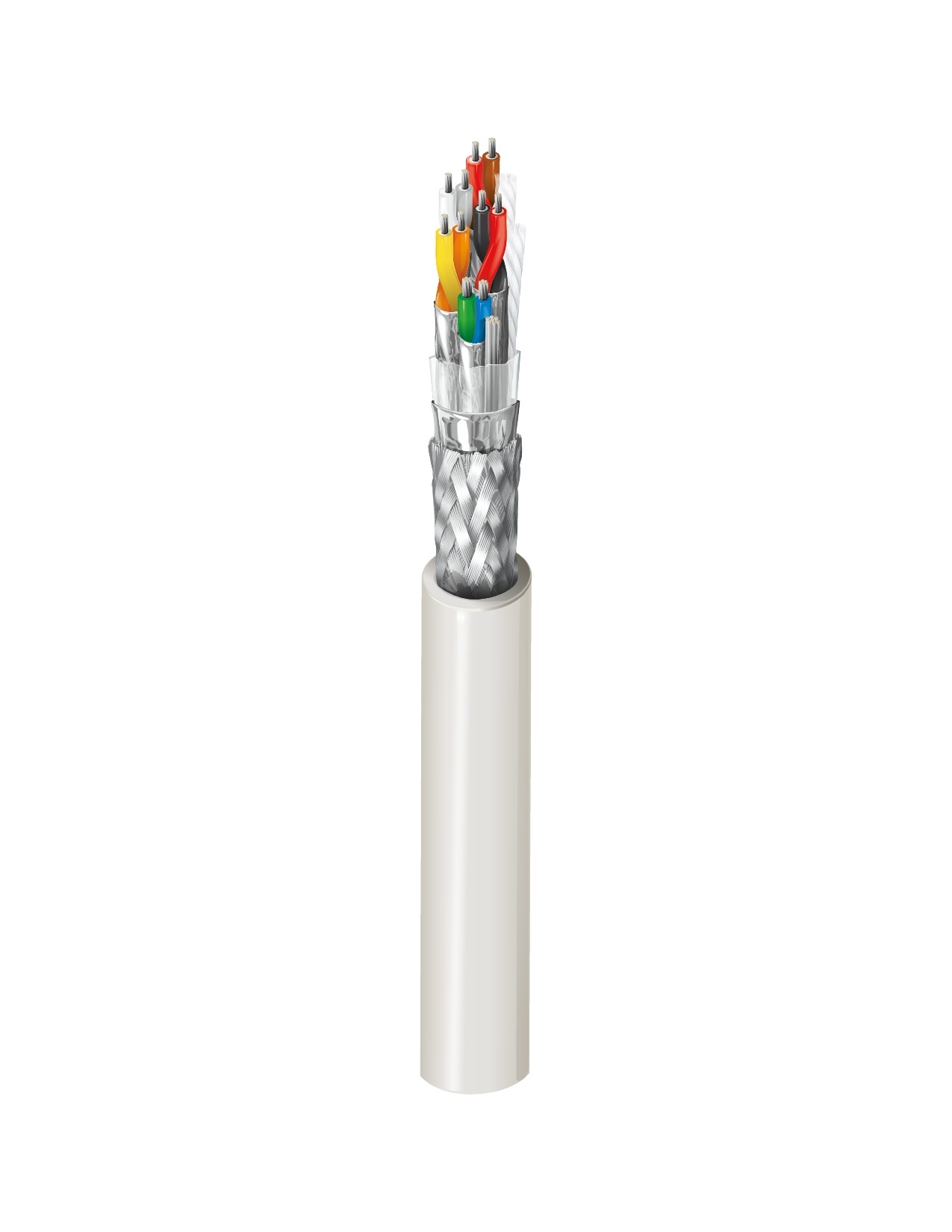

Transceiver 10BASE5, #20-5pr, FPO, Isolated Shields, PVC Jkt, CM
IEEE 802.3 Ethernet Transceiver 10BASE5, 20 AWG stranded (7x28) tinned copper conductors, Datalene® insulation, twisted pairs, overall polyester isolation tape + Duofoil® + tinned copper braid shield (95% coverage), drain wire, light gray PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9902 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 9902 E4X1000 | Gray, Light Dec | 612825260264 | C | Order online |
| 9902 E4X500 | Gray, Light Dec | 612825260271 | C | Order online |
Specifications
Product Overview
| Suitable Applications | IEEE 802.3 Transceiver Cable |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.495 in |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| Size | 20 AWG |
| Stranding | 7x28 |
| Material | TC - Tinned Copper |
| No. of Pairs | 5 |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Insulation Diameter | 0.077 in (2.0 mm) |
| Color Code | Gray & White, Yellow & Orange, Blue & Green, Red & Brown, Red & Black |
| Notes | HDPE |
Inner Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Tri-Laminate (Alum+Poly+Alum) | 100% | 20 AWG (7x28) TC |
| Braid | Tinned Copper (TC) | 95% |
Outer Jacket
| Separator | Polyester Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.495 in |
Electrical Characteristics
Electricals
| Nom. Characteristic Impedance | 78 Ohm |
|---|
Delay
| Max. Delay Skew | 78 ns/100m |
|---|---|
| Nom. Velocity of Prop. | 78% |
Voltage
| UL Voltage Rating | 150 V (CL2), 30 V (AWM 2919) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 248.6 lbs (112.8 kg) |
|---|---|
| Bulk Cable Weight | 138 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -20°C to +80°C |
Bend Radius
| Stationary Min. | 4.95 in (126 mm) |
|---|---|
| Installation Min. | 4.95 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading |
| NEC / UL Compliance | Article 800, Article 725 |
| AWM Compliance | AWM 2919 |
| CEC / C(UL) Compliance | CM. |
| IEEE Compliance | IEEE 802.3 |
| European Directive Compliance | EU CE Mark, EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Polyester separator tape over cabled pairs |
|---|
History
| Update and Revision | Revision Number: 0.363 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
