Transceiver 10BASE5, #20-4pr, FPO, Isolated Shields, PVC Jkt, CM

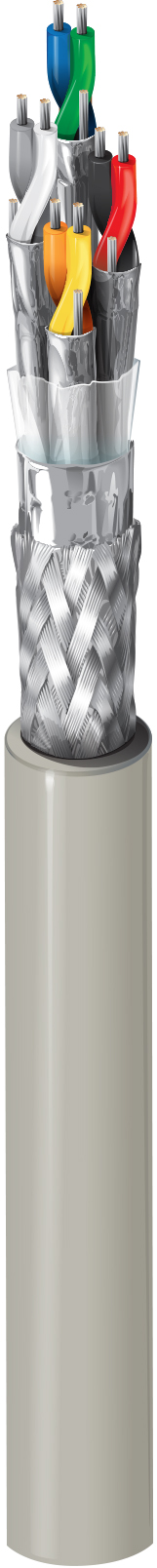

IEEE 802.3 Ethernet Transceiver 10BASE5, 20 AWG stranded (7x28) tinned copper conductors, Datalene® insulation, twisted pairs, overall polyester isolation tape + Duofoil® + tinned copper braid shield (95% coverage), drain wire, light gray PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9901 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 9901 E4X1000 | Gray, Light Dec | 612825260240 | C | Order online |
| 9901 E4X500 | Gray, Light Dec | 612825260257 | C | Order online |
Specifications
Product Overview
| Suitable Applications | IEEE 802.3 Transceiver Cable |
|---|
Construction Details
Conductor
| Element | Pair(s) |
|---|---|
| Size | 20 |
| Stranding | 7x28 |
| Material | TC - Tinned Copper |
| No. of Pairs | 4 |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 0.077 in (2.0 mm) |
| Color Code | Gray & White, Yellow & Orange, Blue & Green, Black & Red |
| Notes | HDPE |
Inner Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Tri-Laminate (Alum+Poly+Alum) | 100% | 22 AWG (7x30) TC |
| Braid | Tinned Copper (TC) | 95% |
Outer Jacket
| Separator | Polyester Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.415 in (10.5 mm) |
Electrical Characteristics
Electricals
| Nom. Characteristic Impedance | 78 Ohm |
|---|
Delay
| Max. Delay Skew | 78 ns/100m |
|---|---|
| Nom. Velocity of Prop. | 78% |
High Frequency
| Max. Insertion Loss (Attenuation) [dB/100m] | 6 |
|---|
Voltage
| UL Voltage Rating | 30 V (AWM 2919), 300 V (CM) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 208 lbs (94.3 kg) |
|---|---|
| Bulk Cable Weight | 97 lbs/1000ft (140 kg/km) |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -20°C To +80°C |
Bend Radius
| Stationary Min. | 4.15 in (105 mm) |
|---|---|
| Installation Min. | 4.15 in (105 mm) |
Standards and Compliance
| Flammability / Reaction to Fire | UL1685 UL Loading, FT4 |
|---|---|
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 725, Article 800, CL2, CM |
| AWM Compliance | AWM 2919 |
| CEC / C(UL) Compliance | CM. |
| IEEE Compliance | IEEE 802.3 |
| European Directive Compliance | EU CE Mark, EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | DEC Part No. 17-01320-00 |
| Plenum Number | 89901 |
History
| Update and Revision | Revision Number: 0.598 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
