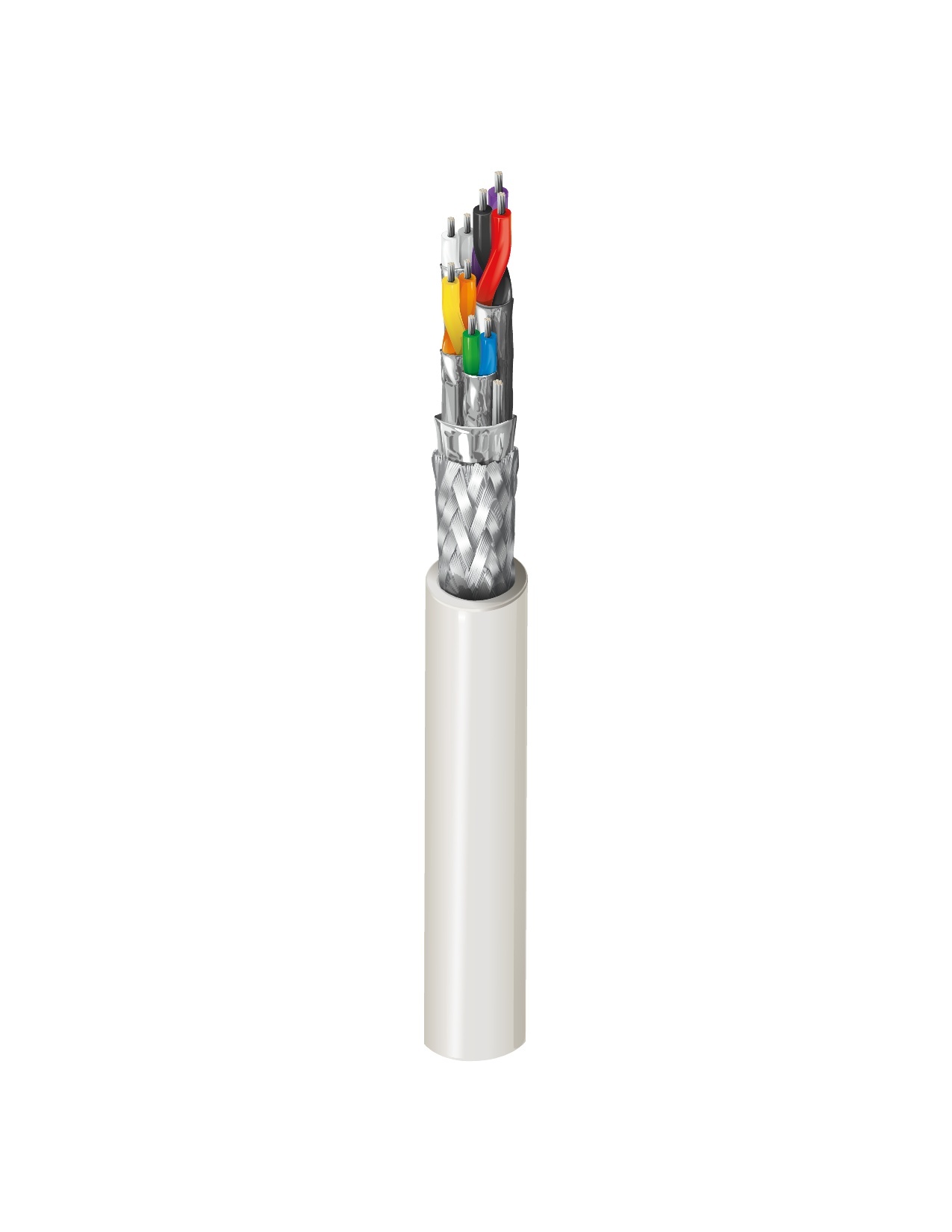

Transceiver 10BASE5, #28-3pr, #24-3c, PO, Isolated Shields, PVC Jkt, CM
IEEE 802.3 Ethernet Transceiver 10BASE5, 3 pairs - 28 AWG stranded (7x36) tinned copper conductors, 3 conductors - 24 AWG stranded (7x32) tinned copper conductors, polypropylene insulation, all indiv. Beldfoil® shielded, overall isolated, Duofoil® + tinned copper braid shield, PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
9898 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 9898 E4X1000 | Gray, Light Dec | 612825260158 | C | Order online |
Specifications
Product Overview
| Suitable Applications | IEEE 802.3 Transceiver Cable |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.26 in |
|---|
Conductor
| Element | Size | Stranding | Material | No. of Pairs |
|---|---|---|---|---|
| Pair(s) | 28 AWG | 7x36 | TC - Tinned Copper | 3 |
| Conductor(s) | 24 AWG | 7x32 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| Triad(s) | PP - Polypropylene | 0.044 in (1.1 mm) | Gray & White, Yellow & Orange, Blue & Green, Black, Red, & Purple |
| Conductor(s) | PP - Polypropylene | 0.035 in (0.89 mm) | Yellow, Orange, White |
Inner Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Tri-Laminate (Alum+Poly+Alum) | 100% | 24 AWG (7x32) TC |
| Braid | Tinned Copper (TC) | 91% |
Outer Jacket
| Separator | Polyester Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.26 in |
Electrical Characteristics
Electricals
| Element | Nom. Characteristic Impedance |
|---|---|
| Pair(s) | 78 Ohm |
| Conductor(s) |
Delay
| Max. Delay Skew | 66 ns/100m |
|---|---|
| Nom. Velocity of Prop. | 66% |
Voltage
| UL Voltage Rating | 150 V (CL2), 30 V (AWM 2919) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 78 lbs (35 kg) |
|---|---|
| Bulk Cable Weight | 42 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -20°C to +80°C |
Bend Radius
| Stationary Min. | 2.6 in (66 mm) |
|---|---|
| Installation Min. | 2.6 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading |
| NEC / UL Compliance | Article 725, CL2 |
| AWM Compliance | AWM 2919 |
| IEEE Compliance | IEEE 802.3 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.357 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
