Audio, Control & Instrument, #20-6pr, PO, Indiv. Foil, HDPE Jkt, Direct Burial

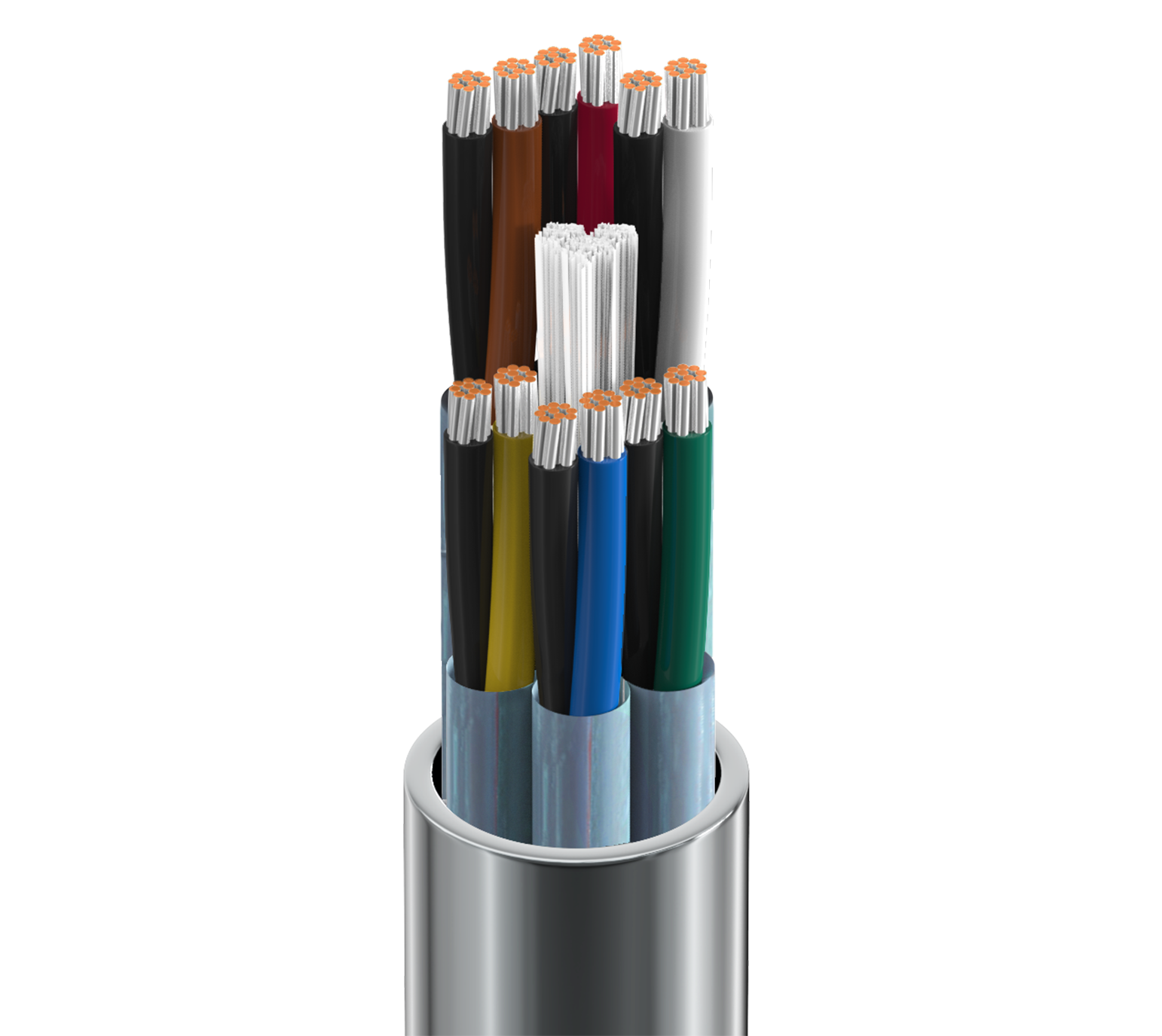

Audio, Control & Instrument Cable, 20 AWG stranded (10x30) tinned copper conductors, polypropylene insulation, 6 twisted pairs, individually shielded with Beldfoil® (100% coverage), 22 AWG stranded tinned copper drain wire, high-density polyethylene jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9886 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 9886 0101000 | Black | 612825260004 | C | Order online |
| 9886 010500 | Black | 612825260011 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, ...); Line Level Audio; Computer Communication; Panel Wiring |
|---|
Construction Details
| Outer Jacket1 Table Notes | HDPE |
|---|---|
| Overall Cable Diameter (Nominal) | 0.455 in (11.6 mm) |
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 6 |
| Size | 20 AWG |
| Stranding | 10x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.013 in (0.33 mm) |
| Nom. Insulation Diameter | 0.063 in (1.6 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown |
Inner Shield
| Element | Pair(s) |
|---|---|
| Shield Type | Tape |
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 22 AWG (19x34) TC |
| Notes | each pair |
Outer Jacket
| Material | PE - Polyethylene |
|---|---|
| Nom. Thickness | 0.045 in (1.1 mm) |
| Nom. Diameter | 0.455 in (11.6 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 11.3 Ohm/1000ft |
| Nom. Inner Shield DCR | 11 Ohm/1000ft (36 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 30 pF/ft (98 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 55 pF/ft (180 pF/m) |
| Nom. Characteristic Impedence | 50 Ohm |
| Nom. Delay | 1.4 ns/ft |
| Nom. Inductance | 0.2 μH/ft (0.66 μH/m) |
| Nom. Velocity of Prop. | 66% |
| Max. Current | 2.7 Amps per Conductor at 25oC |
Voltage
| Voltage Rating | 350 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 213 lbs (96.6 kg) |
|---|---|
| Bulk Cable Weight | 97 lbs/1000ft |
Temperature
| Operating | -40°C to +80°C |
|---|
Bend Radius
| Stationary Min. | 4.6 in (120 mm) |
|---|---|
| Installation Min. | 4.6 in (120 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Burial |
|---|---|
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.490 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
