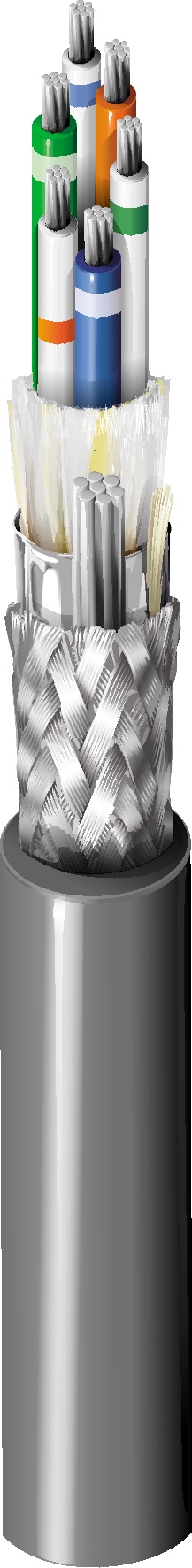

RS485, 1 Pr #24 Str TC, PE Ins, OS+TC Brd, LSZH Jkt, CM
RS-485, 1 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, LSZH Outer Jacket, CM
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
9841ZH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 9841ZH 060500 | Chrome | 612825382591 | Order online |
Specifications
Product Overview
| Suitable Applications | exposure to rodent, crush, or cut through force, burial, POS, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.258 in (6.55 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 24 AWG |
| Stranding | 7x32 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene |
| Nom. Thickness | 0.028 in (0.71 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Braid | Tinned Copper (TC) | 90% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.035 in (0.89 mm) |
| Nom. Diameter | 0.258 in (6.55 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 24.0 Ohm/1000ft (78.7 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 14.5 pF/ft (47.6 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 26 pF/ft (85 pF/m) |
| Nom. Characteristic Impedence | 120 Ohm |
| Nom. Delay | 1.6 ns/ft |
| Nom. Velocity of Prop. | 66% |
| Max. Current | 2.1 Amps per Conductor at 25oC |
High Frequency (Nominal/Typical)
| Element | Pair(s) |
|---|
Voltage
| UL Voltage Rating | 300 V (CMG) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 72.3 lbs (32.8 kg) |
|---|---|
| Bulk Cable Weight | 33 lbs/1000ft (49 kg/km) |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C to 75°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 FT4 Loading |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 21088 |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.277 Revision Date: 09-07-2025 |
|---|
