RS232/422 Low Cap, #28-7pr, PP, O/A Foil+Braid, PVC Jkt, CL2, 100Ω

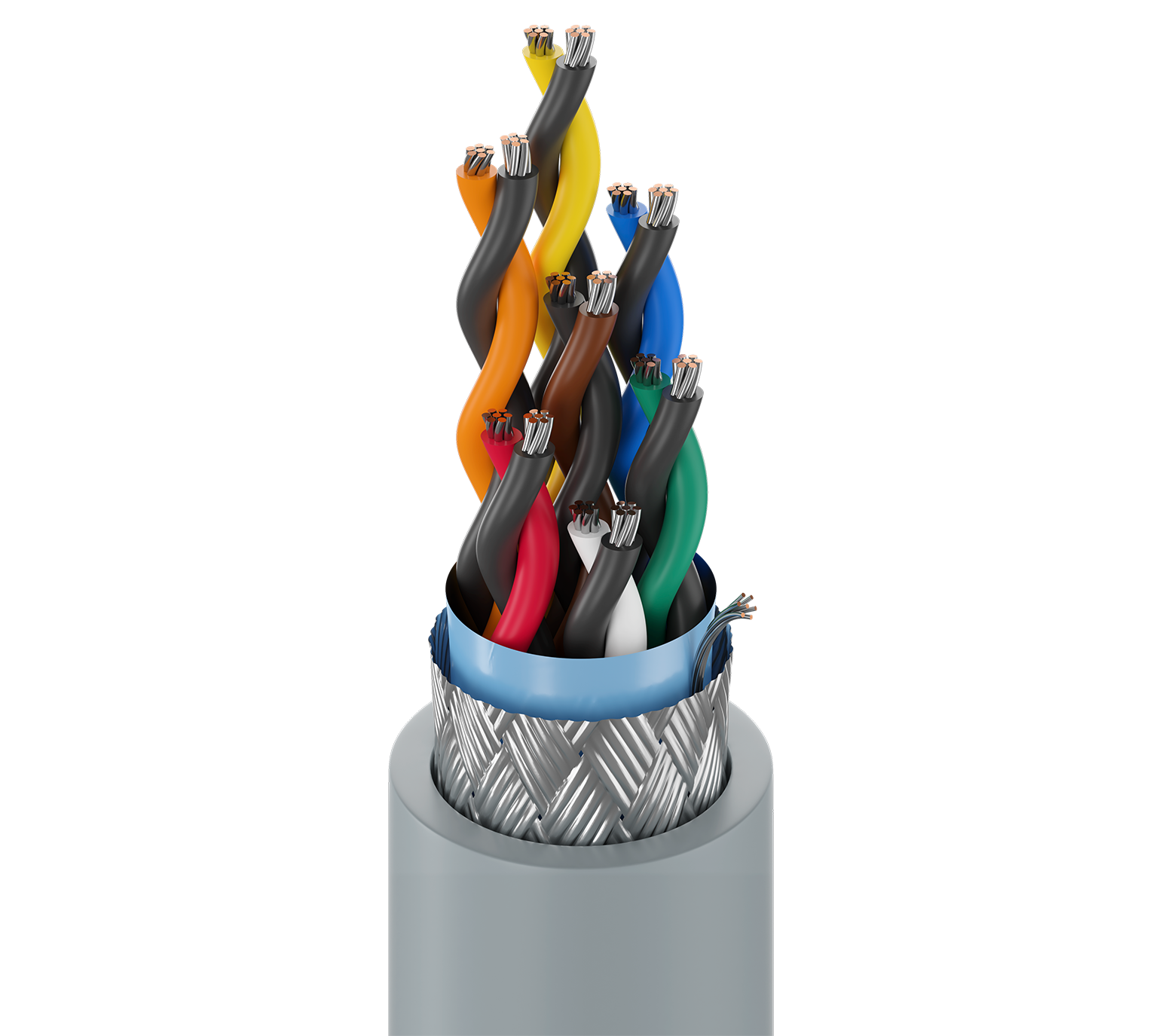

Computer EIA RS-232/422 Cable, 7-Pair, 28 AWG stranded (7x36) tinned copper conductors, polypropylene insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (90% coverage), 28 AWG stranded tinned copper drain wire, PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
9808 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 9808 060100 | Chrome | Reel | 100 ft | 612825258872 | Order online |
| 9808 060500 | Chrome | Reel | 500 ft | 612825258896 | Order online |
| 9808 0601000 | Chrome | Reel | 1,000 ft | 612825258889 | Order online |
Specifications
Product Overview
| Suitable Applications | RS-232 extended distance applications; RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.256 in (6.50 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 7 |
| Size | 28 AWG |
| Stranding | 7x36 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.009 in (0.23 mm) |
| Nom. Insulation Diameter | 0.033 in (0.84 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 28 AWG (7x36) TC |
| Braid | Tinned Copper (TC) | 90% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.035 in (0.89 mm) |
| Nom. Diameter | 0.256 in (6.50 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 5 Ohm/1000ft (16 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 73.5 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 16.5 pF/ft (54.1 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 27.5 pF/ft (90.2 pF/m) |
| Nom. Characteristic Impedence | 100 Ohm |
| Nom. Delay | 1.4 ns/ft |
| Nom. Inductance | 0.19 μH/ft (0.62 μH/m) |
| Nom. Velocity of Prop. | 66% |
| Max. Current | 0.9 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 30 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 71 lbs (32 kg) |
|---|---|
| Bulk Cable Weight | 41 lbs/1000ft |
Temperature
| UL Temperature | 60°C |
|---|---|
| Operating | -30°C to +60°C |
Bend Radius
| Stationary Min. | 2.6 in (66 mm) |
|---|---|
| Installation Min. | 2.6 in (66 mm) |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL 1685 FT4 Loading |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 725, CL2 |
| AWM Compliance | AWM 2960 |
| European Directive Compliance | EU CE Mark, EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.495 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
