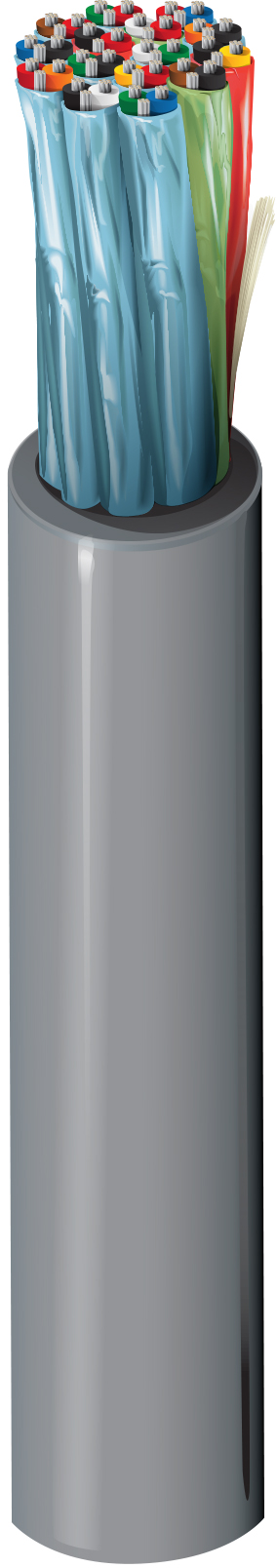

Audio, Control & Instrument, #18-15pr, PO, Indiv. Foil, PVC Jkt, CM
Audio, Control & Instrument Cable, 18 AWG stranded (19x30) tinned copper conductors, polypropylene insulation, 15 twisted pairs, individually shielded with Beldfoil® (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9777 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 9777 060500 | Chrome | Reel | 500 ft | 612825258629 | C | Order online |
| 9777 0601000 | Chrome | Reel | 1,000 ft | 612825258612 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, ...); Line Level Audio; Computer Communication; Panel Wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.819 in (20.8 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 15 |
| Size | 18 AWG |
| Stranding | 19x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.019 in (0.48 mm) |
| Nom. Insulation Diameter | 0.082 in (2.1 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue |
Inner Shield
| Element | Pair(s) |
|---|---|
| Shield Type | Tape |
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 20 AWG (7x28) TC |
| Notes | each pair |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.052 in (1.3 mm) |
| Nom. Diameter | 0.819 in (20.8 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 7.2 Ohm/1000ft |
| Nom. Inner Shield DCR | 8.3 Ohm/1000ft (27 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 30 pF/ft (98 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 55 pF/ft (180 pF/m) |
| Nom. Characteristic Impedence | 50 Ohm |
| Nom. Delay | 1.4 ns/ft |
| Nom. Inductance | 0.18 μH/ft (0.59 μH/m) |
| Nom. Velocity of Prop. | 66% |
| Max. Current | 2.7 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V (CM), 30 V (AWM 2929) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 930 lbs (420 kg) |
|---|---|
| Bulk Cable Weight | 350 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -20°C to +80°C |
Bend Radius
| Stationary Min. | 8.2 in (210 mm) |
|---|---|
| Installation Min. | 8.2 in (210 mm) |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL 1685 FT4 Loading |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2919 |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.472 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
