Product Number: 9767

Audio, Control & Instrument, #22-37pr, PP, Indiv. Foil, PVC Jkt, CM

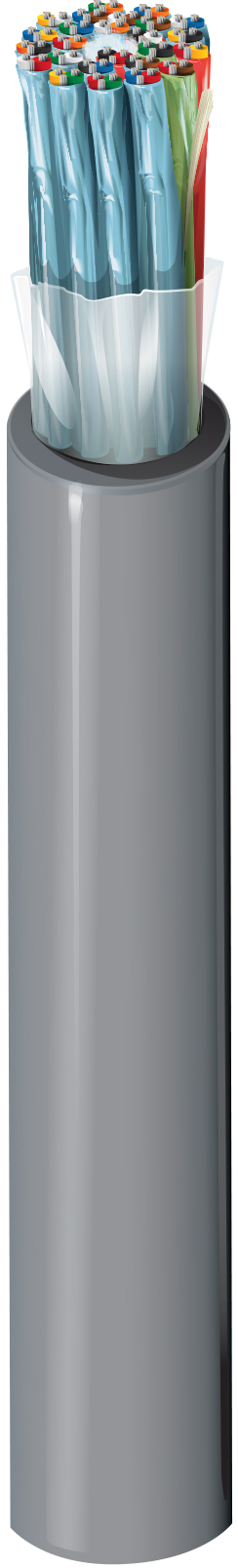

Audio, Control & Instrument Cable, 37-Pair, 22 AWG stranded (7x30) tinned copper conductor, polypropylene insulation, individually shielded pairs with Beldfoil® (100% coverage), overall PVC jacket and 22 AWG stranded tinned copper drain wire.

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

9767 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
9767 060500	Chrome	Reel	500 ft	612825258308	C D	Order online
9767 0601000	Chrome	Reel	1,000 ft	612825258292	C D	Order online

Specifications

Product Overview

Suitable Applications	low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; computer communication; panel wiring

Construction Details

Overall Cable Diameter (Nominal)	0.8 in (20 mm)

Conductor

Element	Pair(s)
No. of Elements	37
Size	22 AWG
Stranding	7x30
Material	TC - Tinned Copper

Insulation

Element	Pair(s)
Material	PP - Polypropylene
Nom. Thickness	0.0105 in (0.267 mm)
Color Code	Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue, Green & Yellow, Green & Brown, Green & Orange, White & Blue, White & Yellow, White & Brown, White & Orange, Blue & Yellow, Blue & Brown, Blue & Orange, Brown & Yellow, Brown & Orange, Orange & Yellow, Purple & Orange, Purple & Red, Purple & White, Purple & Green, Purple & Blue, Purple & Yellow, Purple & Brown, Purple & Black, Gray & White

Inner Shield

Element	Pair(s)
Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	22 AWG (7x30) TC
Notes	Each pair

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.069 in (1.8 mm)
Nom. Diameter	0.8 in (20 mm)

Electrical Characteristics

Electricals

Element	Pair(s)
Nom. Conductor DCR	15 Ohm/1000ft (49 Ohm/km)
Nom. Capacitance Cond-to-Cond	30 pF/ft (98 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	55 pF/ft (180 pF/m)
Nom. Characteristic Impedence	50 Ohm
Nom. Inductance	0.18 μH/ft (0.59 μH/m)
Nom. Velocity of Prop.	66%
Max. Current	1 Amp per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (CM), 30 V (UL AWM 2919)

Mechanical Characteristics

Max. Pull Tension	368 lbs (167 kg)
Bulk Cable Weight	393 lbs/1000ft (585 kg/km)

Temperature

UL Temperature	80°C (UL AWM 2919)
Operating	-20°C to +80°C

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	UL1685 UL Loading
NEC / UL Compliance	Article 800, CM
AWM Compliance	AWM 2919
CEC / C(UL) Compliance	CM.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

History

Update and Revision	Revision Number: 0.327 Revision Date: 09-07-2025
Footnote	C - CRATE REEL PUT-UP., D - FINAL PUT-UP LENGTH MAY VARY -0% TO +20% FROM LENGTH SHOWN.
