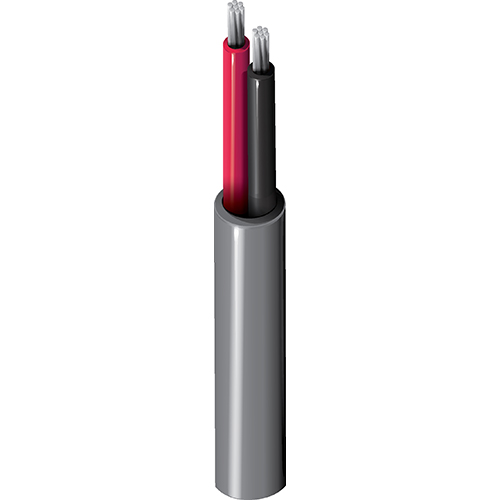

Electronic, 6 Pr #20 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 6 Pair 20AWG (7x28) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9751 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 9751 060100 | Chrome | 612825258186 | Order online |
| 9751 0601000 | Chrome | 612825258193 | Order online |
Specifications
Product Overview
| Suitable Applications | low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; computer communication; panel wiring |
|---|
Construction Details
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 6 |
| Size | 20 |
| Stranding | 7x28 |
| Material | TC - Tinned Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.015 in (0.38 mm) |
| Nom. Insulation Diameter | 0.065 in (1.7 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown |
Outer Shield
| Drainwire Type | 20 AWG (7x28) TC |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.035 in (0.89 mm) |
| Nom. Diameter | 0.366 in (9.30 mm) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 11.3 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 24.5 pF/ft (80.4 pF/m) |
| Max. Current | 2.6 Amps per Conductor at 20oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 163.8 lbs (74.30 kg) |
|---|---|
| Bulk Cable Weight | 81 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -20°C To +80°C |
Bend Radius
| Stationary Min. | 3.66 in (93.0 mm) |
|---|---|
| Installation Min. | 3.66 in (93.0 mm) |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 FT4 Loading, FT4 |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.492 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
