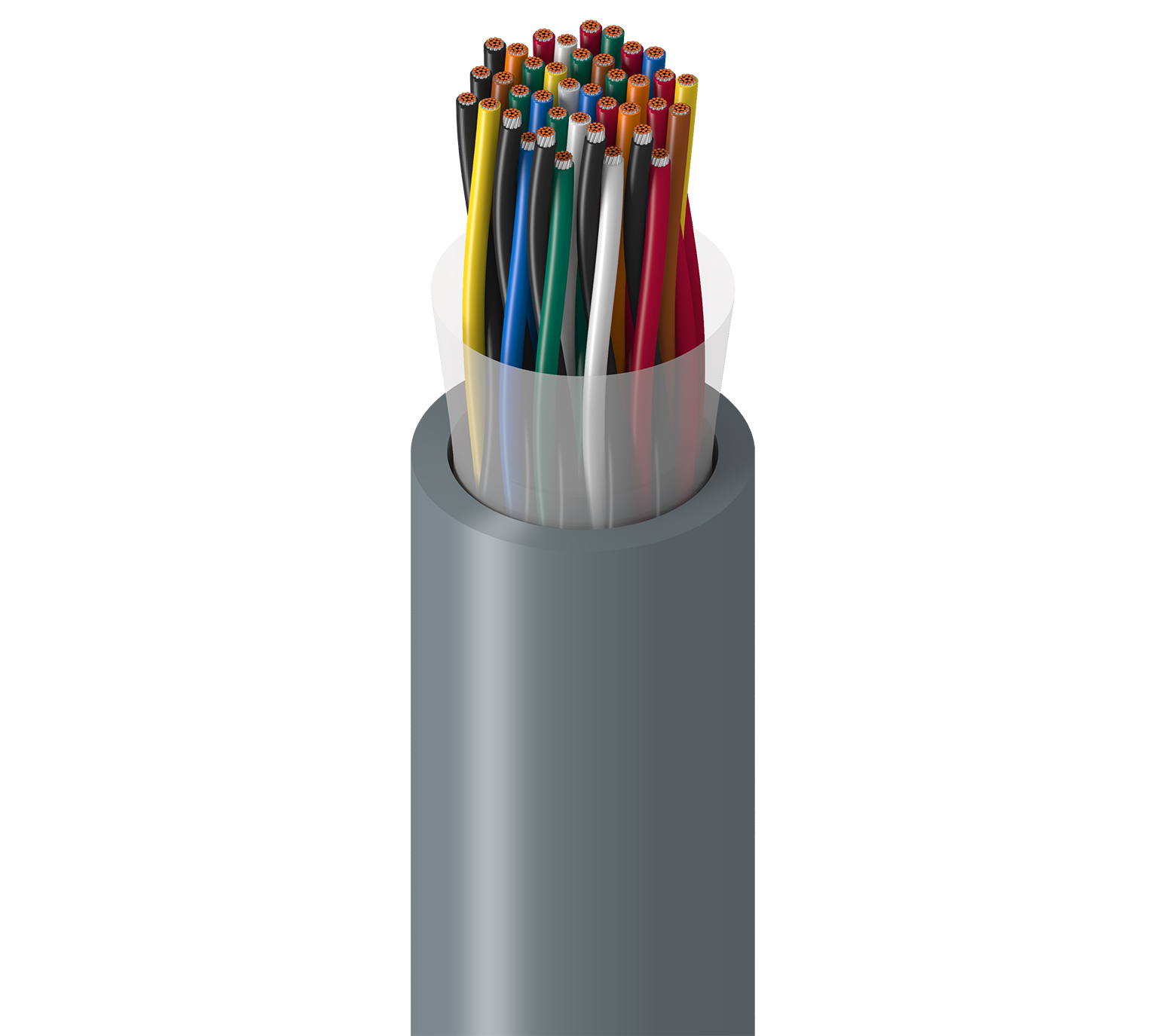

Electronic, 19 Pr #18 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 19 Pair 18AWG (16x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
9743 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 9743 0601000 | Chrome | 612825258032 | C | Order online |
Specifications
Product Overview
| Suitable Applications | low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; computer communication; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.721 in (18.3 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 19 |
| Size | 18 AWG |
| Stranding | 16x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.013 in (0.33 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue, Green & Yellow, Green & Brown, Green & Orange, White & Blue |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.055 in (1.4 mm) |
| Nom. Diameter | 0.721 in (18.3 mm) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 6.8 Ohm/1000ft (22 Ohm/km) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 30 pF/ft (98 pF/m) |
| Nom. Inductance | 0.17 μH/ft (0.56 μH/m) |
| Max. Current | 2.6 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V (CMG), 300 V (UL AWM 2464) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 768 lbs (348 kg) |
|---|---|
| Bulk Cable Weight | 320 lbs/1000ft (480 kg/km) |
Temperature
| UL Temperature | 80°C (UL AWM 2464) |
|---|---|
| Operating | -20°C to +80°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 FT4 Loading |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.264 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
