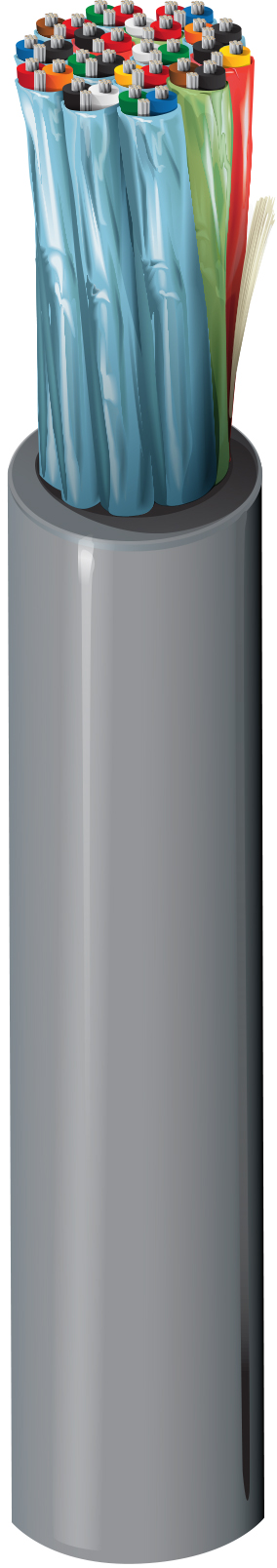

RS232/422 Low Cap, #24-19pr, FPE, Indiv. Foil, PVC Jkt, CM, 100Ω
Computer EIA RS-232/422, Digital Audio Cable, 19-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, individually shielded with Beldfoil® (100% coverage), 24 AWG stranded tinned copper drain wire, overall PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
9737 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 9737 0601000 | Chrome | Reel | 1,000 ft | 612825257905 | C | Order online |
Specifications
Product Overview
| Suitable Applications | RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); digital audio; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.671 in (17.0 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 19 |
| Size | 24 AWG |
| Stranding | 7x32 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Thickness | 0.0185 in (0.470 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue, Green & Yellow, Green & Brown, Green & Orange, White & Blue |
Inner Shield
| Element | Pair(s) |
|---|---|
| Shield Type | Tape |
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (7x32) TC |
| Notes | each pair |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.065 in (1.7 mm) |
| Nom. Diameter | 0.671 in (17.0 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 24 Ohm/1000ft (79 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 12.5 pF/ft (41.0 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 23.2 pF/ft (76.1 pF/m) |
| Nom. Characteristic Impedence | 100 Ohm |
| Nom. Inductance | 0.23 μH/ft (0.75 μH/m) |
| Nom. Velocity of Prop. | 76% |
| Max. Current | 1.9 Amps per Conductor at 25oC |
High Frequency (Nominal/Typical)
| Frequency | Nom. Insertion Loss (Attenuation) [dB/100ft] |
|---|---|
| 0.384 MHz | 0.74 |
| 0.7056 MHz | 0.87 |
| 0.768 MHz | 0.88 |
| 1.024 MHz | 0.94 |
| 1.4112 MHz | 1.01 |
| 1.536 MHz | 1.03 |
| 2.048 MHz | 1.13 |
| 2.8224 MHz | 1.29 |
| 3.072 MHz | 1.35 |
| 4.096 MHz | 1.57 |
| 5.6448 MHz | 1.78 |
| 6.144 MHz | 1.84 |
| 8.192 MHz | 2.13 |
| 11.2896 MHz | 2.45 |
| 12.288 MHz | 2.57 |
| 24.576 MHz | 3.57 |
Voltage
| UL Voltage Rating | 300 V (CM), 300 V (UL AWM 2493) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 325 lbs (147 kg) |
|---|---|
| Bulk Cable Weight | 206 lbs/1000ft (307 kg/km) |
Temperature
| UL Temperature | 60°C (UL AWM 2493) |
|---|---|
| Operating | -20°C to +80°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2493 |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight. |
|---|
History
| Update and Revision | Revision Number: 0.454 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
