Product Number: 9735

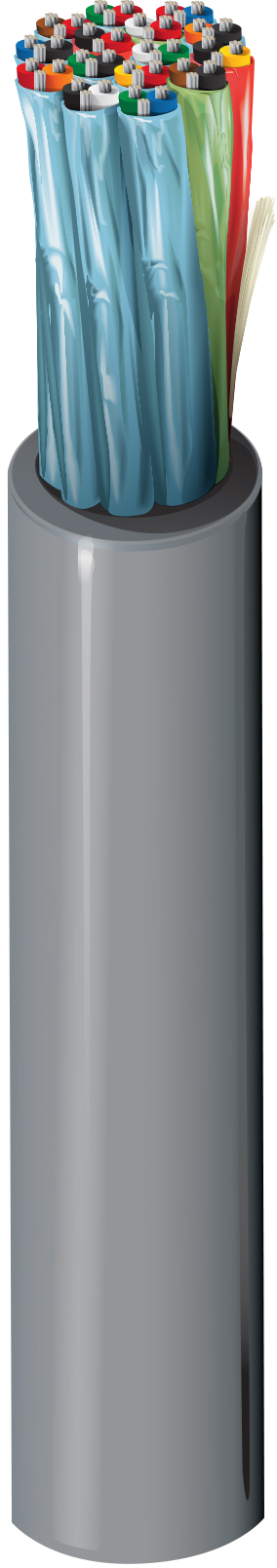

RS232/422 Low Cap, #24-15pr, FPE, Indiv. Foil, PVC Jkt, CM, 100Ω

Computer EIA RS-232/422, Digital Audio Cable, 15-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, individually shielded with Beldfoil® (100% coverage), 24 AWG stranded tinned copper drain wire, overall PVC jacket.

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

9735 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
9735 060500	Chrome	Reel	500 ft	612825257851	C	Order online
9735 0601000	Chrome	Reel	1,000 ft	612825257844	C	Order online

Specifications

Product Overview

Suitable Applications	RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); digital audio; panel wiring

Construction Details

Overall Cable Diameter (Nominal)	0.639 in (16.2 mm)

Conductor

Element	Pair(s)
No. of Elements	15
Size	24 AWG
Stranding	7x32
Material	TC - Tinned Copper

Insulation

Element	Pair(s)
Material	PE - Polyethylene (Foam)
Nom. Thickness	0.0185 in (0.470 mm)
Color Code	Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue

Inner Shield

Element	Pair(s)
Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (7x32) TC
Notes	each pair

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.065 in (1.7 mm)
Nom. Diameter	0.639 in (16.2 mm)

Electrical Characteristics

Electricals

Element	Pair(s)
Nom. Conductor DCR	24 Ohm/1000ft (79 Ohm/km)
Nom. Capacitance Cond-to-Cond	12.5 pF/ft (41.0 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	23.2 pF/ft (76.1 pF/m)
Nom. Characteristic Impedence	100 Ohm
Nom. Inductance	0.23 μH/ft (0.75 μH/m)
Nom. Velocity of Prop.	76%
Max. Current	1.9 Amps per Conductor at 25oC

High Frequency (Nominal/Typical)

Frequency	Nom. Insertion Loss (Attenuation) [dB/100ft]
0.384 MHz	0.74
0.705 MHz	0.87
0.768 MHz	0.88
1.024 MHz	0.94
1.411 MHz	1.01
1.536 MHz	1.03
2.048 MHz	1.13
2.822 MHz	1.29
3.072 MHz	1.35
4.096 MHz	1.57
5.644 MHz	1.78
6.144 MHz	1.84
8.192 MHz	2.13
11.289 MHz	2.45
12.288 MHz	2.57
24.576 MHz	3.57

Voltage

UL Voltage Rating	300 V (CM), 300 V (UL AWM 2493)

Mechanical Characteristics

Max. Pull Tension	250 lbs (110 kg)
Bulk Cable Weight	169 lbs/1000ft (251 kg/km)

Temperature

UL Temperature	60°C (UL AWM 2493)
Operating	-20°C to +80°C

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	UL1685 UL Loading
NEC / UL Compliance	Article 800, CM
AWM Compliance	AWM 2493
CEC / C(UL) Compliance	CM.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes	Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

History

Update and Revision	Revision Number: 0.335 Revision Date: 09-07-2025
Footnote	C - CRATE REEL PUT-UP.
