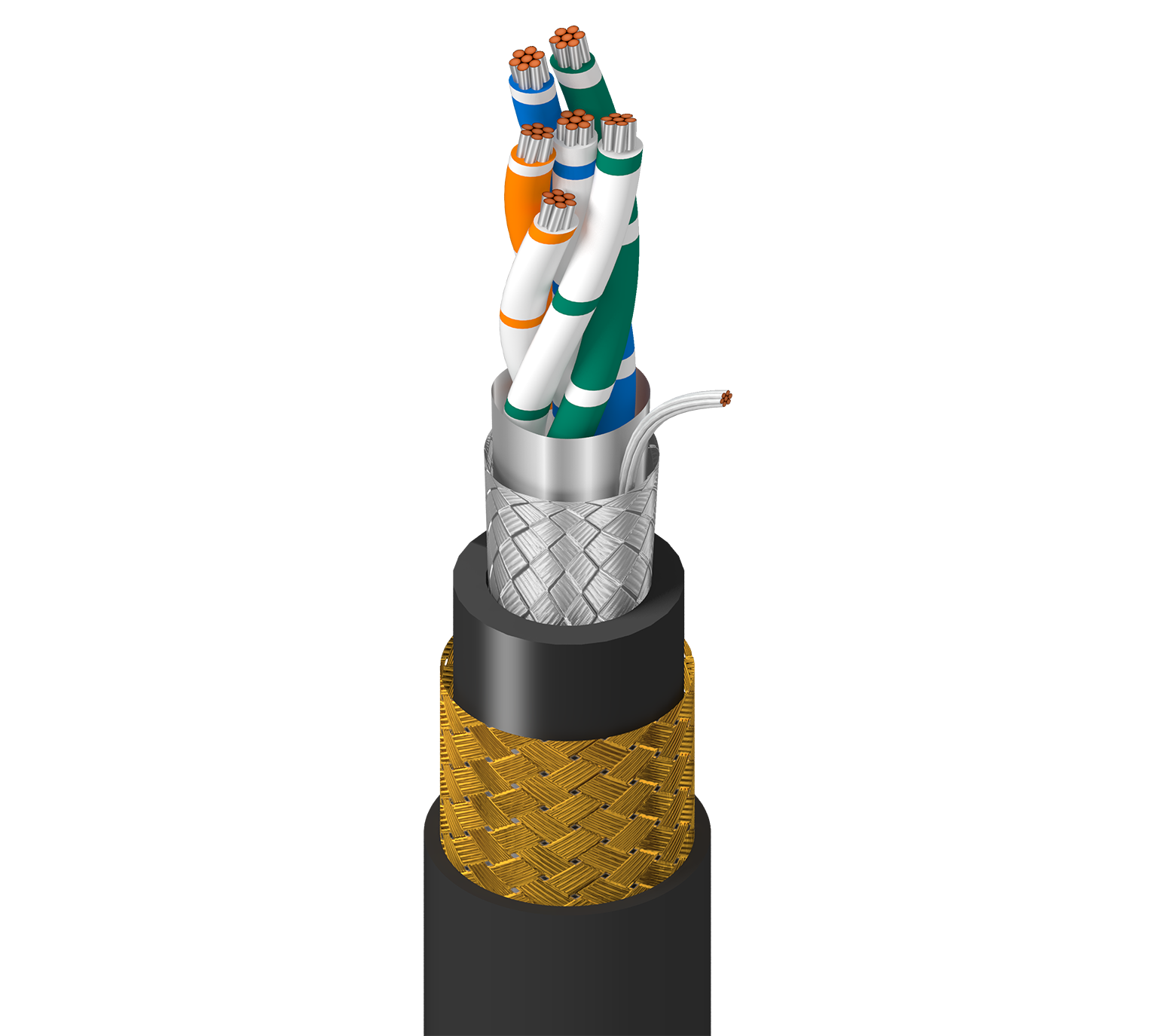

RS485, 3 Pr #22 Str TC, PE Ins, OS+TC Brd, LSZH-TS Jkt, Brnz Brd Armor, LSZH-TS Jkt, CMG, PLTC
RS-485, 3 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, LSZH-TS Inner Jacket, Bronze Braid Armor, LSZH-TS Outer Jacket, CMG, PLTC
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
973108Z is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 973108Z 0105000 | Black | 612825257752 | Order online |
Specifications
Product Overview
| Suitable Applications | shipboard, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.623 in (15.8 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 3 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Thickness | 0.023 in (0.58 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe |
| Notes | HDPE |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC |
| Braid | Tinned Copper (TC) | 65% |
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) |
|---|
Armor
| Armor Type & Material | BBA - Bronze Braid Armor |
|---|
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) |
|---|---|
| Nom. Thickness | 0.050 in (1.3 mm) |
| Nom. Diameter | 0.623 in (15.8 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Characteristic Impedence | 120 Ohm |
| Nom. Velocity of Prop. | 78% |
High Frequency (Nominal/Typical)
| Element | Pair(s) |
|---|
Voltage
| UL Voltage Rating | 300 V (CMG, PLTC) |
|---|
Standards and Compliance
| Environmental Suitability | Outdoor, Sunlight Resistance |
|---|---|
| NEC / UL Compliance | Article 725, Article 800, CMG, PLTC |
| CEC / C(UL) Compliance | CMG. |
History
| Update and Revision | Revision Number: 0.137 Revision Date: 02-20-2026 |
|---|
