Audio, Control & Instrument, #24-25pr, PVC, PVC Jkt, CMG

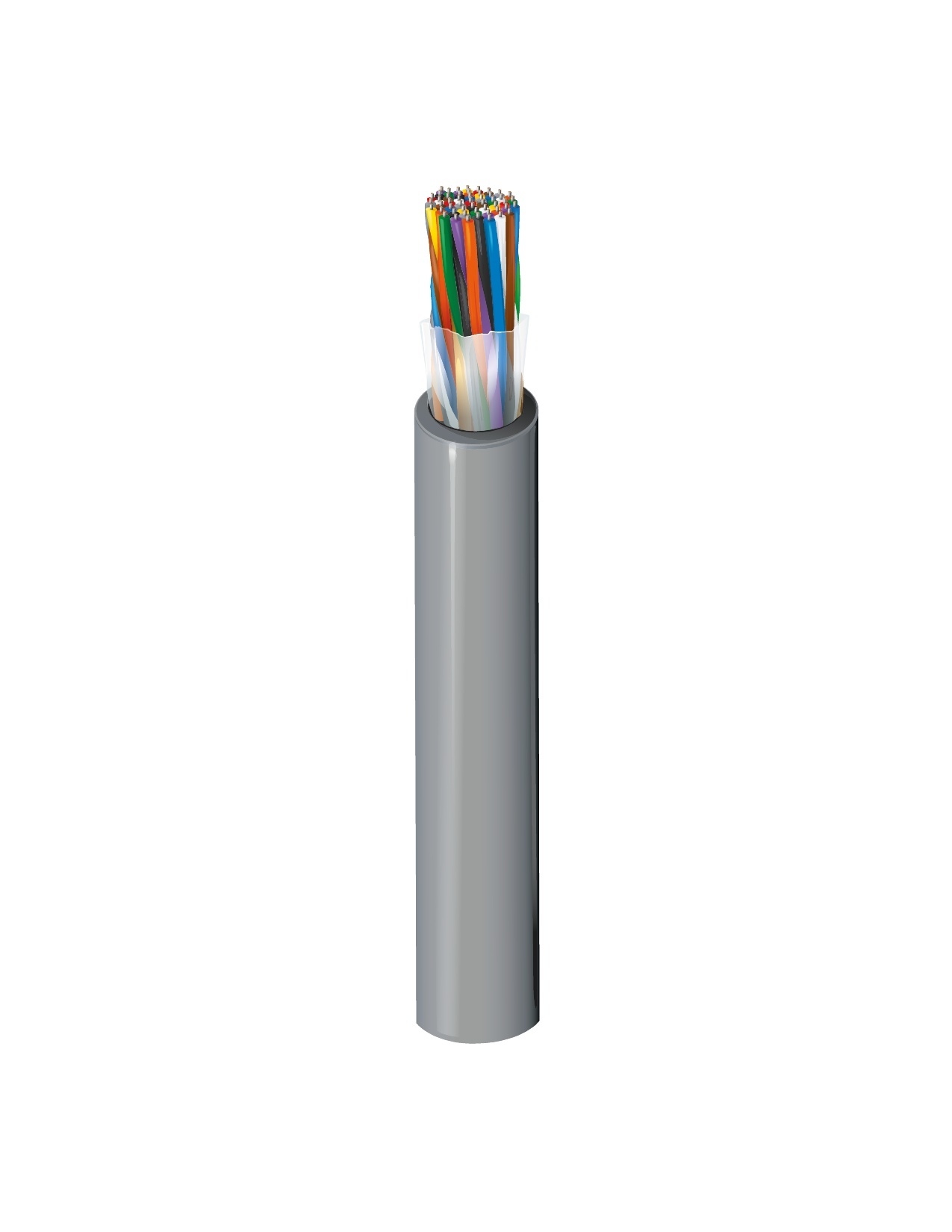

Audio, Control & Instrument Cable, 24 AWG solid tinned copper conductors, PVC insulation, twisted pairs, PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9585 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 9585 060500 | Chrome | Reel | 500 ft | 612825256274 | C | Order online |
| 9585 0601000 | Chrome | Reel | 1,000 ft | 612825256267 | C | Order online |
Specifications
Product Overview
| Suitable Applications | telephone cables; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); voice communications |
|---|
Construction Details
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 25 |
| Size | 24 |
| Stranding | Solid |
| Material | TC - Tinned Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.01 in (0.25 mm) |
| Nom. Insulation Diameter | 0.041 in (1.0 mm) |
| Color Code | White & Blue, White & Orange, White & Green, White & Brown, White & Gray, Red & Blue, Red & Orange, Red & Green, Red & Brown, Red & Gray, Black & Blue, Black & Orange, Black & Green, Black & Brown, Black & Gray, Yellow & Blue, Yellow & Orange, Yellow & Green, Yellow & Brown, Yellow & Gray, Purple & Blue, Purple & Orange, Purple & Green, Purple & Brown, Purple & Gray |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.04 in (1.0 mm) |
| Nom. Diameter | 0.48 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 32.8 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 22 pF/ft (72 pF/m) |
| Max. Current | 1 Amp per Conductor at 20oC |
Voltage
| UL Voltage Rating | 300 V (CMG), 150 V (AWM 2576) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 255 lbs (116 kg) |
|---|---|
| Bulk Cable Weight | 134 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -20°C To +80°C |
Bend Radius
| Stationary Min. | 4.8 in (120 mm) |
|---|---|
| Installation Min. | 4.8 in |
Standards and Compliance
| Flammability / Reaction to Fire | UL1685 FT4 Loading, FT4 |
|---|---|
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 2576 |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.325 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
