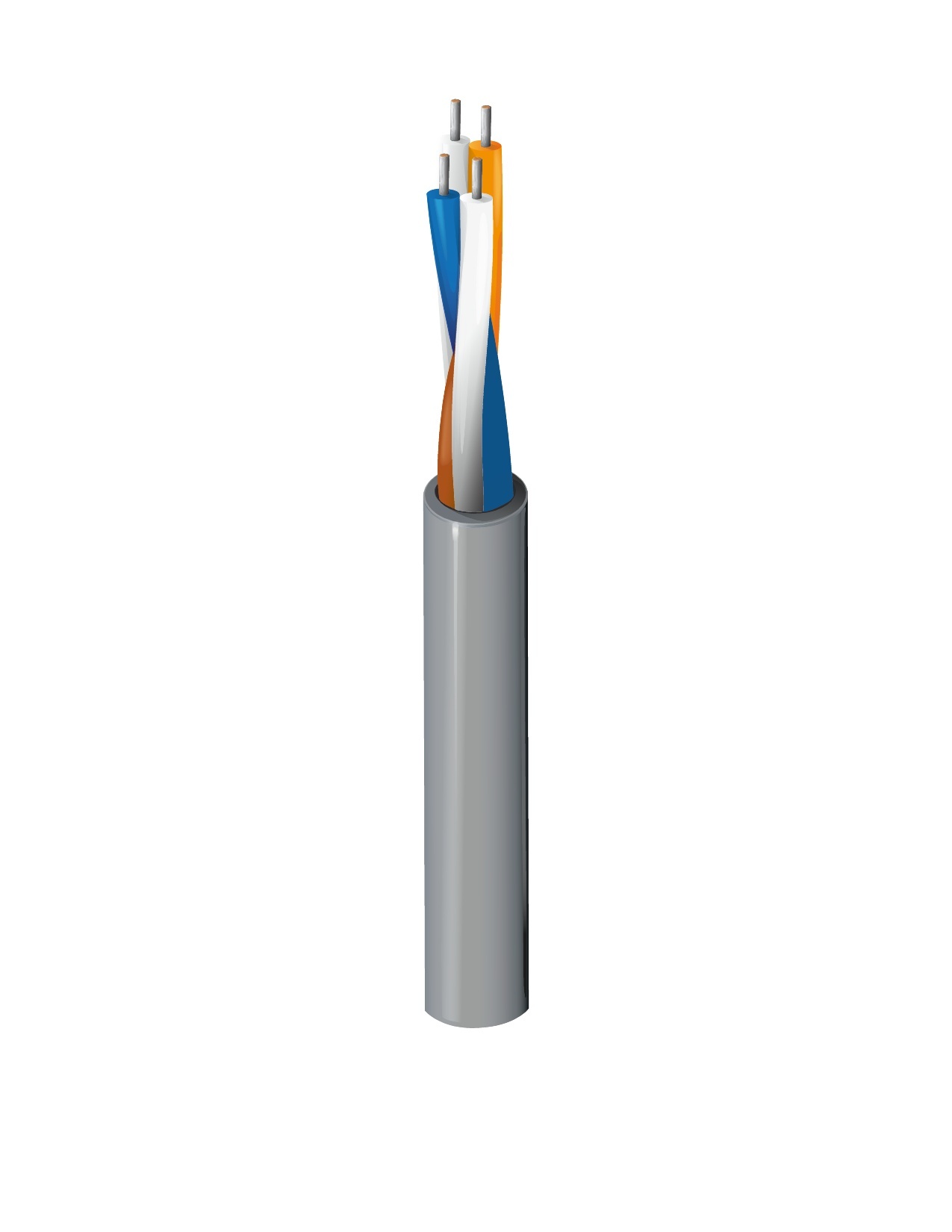

Audio, Control & Instrument, #24-2pr, PVC, PVC Jkt, CMG
Audio, Control & Instrument Cable, 24 AWG solid tinned copper conductors, PVC insulation, twisted pairs, PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
9562 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 9562 060500 | Chrome | Reel | 500 ft | 612825255970 | C | Order online |
| 9562 060U500 | Chrome | UnReel | 500 ft | 612825255956 | — | Order online |
| 9562 0601000 | Chrome | Reel | 1,000 ft | 612825255963 | C | Order online |
| 9562 060U1000 | Chrome | UnReel | 1,000 ft | 612825255949 | — | Order online |
Specifications
Product Overview
| Suitable Applications | telephone cables; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); voice communications |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.199 in |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 2 |
| Size | 24 AWG |
| Stranding | Solid |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.01 in (0.25 mm) |
| Nom. Insulation Diameter | 0.041 in (1.0 mm) |
| Color Code | White & Blue, White & Orange |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.032 in (0.81 mm) |
| Nom. Diameter | 0.199 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 32.8 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 22 pF/ft (72 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 39.6 pF/ft (130 pF/m) |
| Max. Current | 8.4 Amps per Conductor at 30oC |
Voltage
| UL Voltage Rating | 300 V (CMG), 150 V (AWM 2576) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 20 lbs (9.1 kg) |
|---|---|
| Bulk Cable Weight | 18 lbs/1000ft |
Temperature
| UL Temperature | 60°C |
|---|---|
| Operating | -20°C to +60°C |
Bend Radius
| Stationary Min. | 1.99 in (50.5 mm) |
|---|---|
| Installation Min. | 1.99 in |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Oil Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | UL1685 FT4 Loading, FT4 |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 2576 |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.315 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
