Blue Hose®, 1 Pr #20 Str TC, PE Ins Blu, Clr, Foil+TC Brd, PE Jkt, DIR BUR

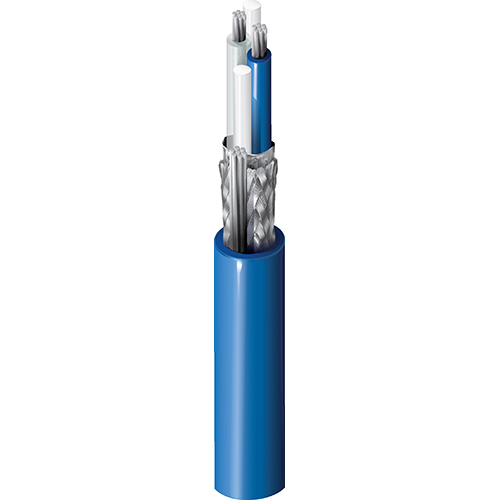

Blue Hose® for Data Highway Plus, 1 Pair 20AWG (7x28) Tinned Copper, PE Insulation Blue & Clear, Overall Beldfoil®+Tinned Copper Braid(55%) Shield, Blue PE Outer Jacket, DIR BUR
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9463DB is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 9463DB S8Y1000 | Blue, Uv | 612825253693 | C | Order online |
| 9463DB S8Y5000 | Blue, Uv | 612825253709 | C | Order online |
Specifications
Product Overview
| Suitable Applications | direct burial, harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.240 in (6.10 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 20 AWG |
| Stranding | 7x28 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene |
| Nom. Thickness | 0.019 in (0.48 mm) |
| Nom. Insulation Diameter | 0.0755 in (1.92 mm) |
| Color Code | Clear & Blue |
| Notes | Twinax with rod fillers |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
| Braid | Tinned Copper (TC) | 55% |
Outer Jacket
| Material | PE - Polyethylene |
|---|---|
| Nom. Thickness | 0.032 in (0.81 mm) |
| Nom. Diameter | 0.240 in (6.10 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 9.5 Ohm/1000ft (31 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 19.7 pF/ft (64.6 pF/m) |
| Nom. Capacitance Cond-to-Shield | 37 pF/ft (120 pF/m) |
| Nom. Characteristic Impedence | 78 Ohm |
| Nom. Delay | 1.54 ns/ft |
| Nom. Inductance | 0.12 μH/ft (0.39 μH/m) |
| Nom. Velocity of Prop. | 66% |
High Frequency (Nominal/Typical)
| Element | Frequency [MHz] | Nom. Insertion Loss (Attenuation) |
|---|---|---|
| Pair(s) | 1 | 0.6 dB/100ft |
| 10 | 2.1 dB/100ft | |
| 50 | 5.0 dB/100ft | |
| 100 | 7.5 dB/100ft | |
| 200 | 11.0 dB/100ft | |
| 400 | 16.0 dB/100ft |
Mechanical Characteristics
| Max. Pull Tension | 48 lbs (22 kg) |
|---|---|
| Bulk Cable Weight | 36 lbs/1000ft (54 kg/km) |
Temperature
| Operating | -40°C to 80°C |
|---|
Bend Radius
| Stationary Min. | 2.5 in (64 mm) |
|---|---|
| Installation Min. | 2.5 in |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Burial |
|---|---|
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.288 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
