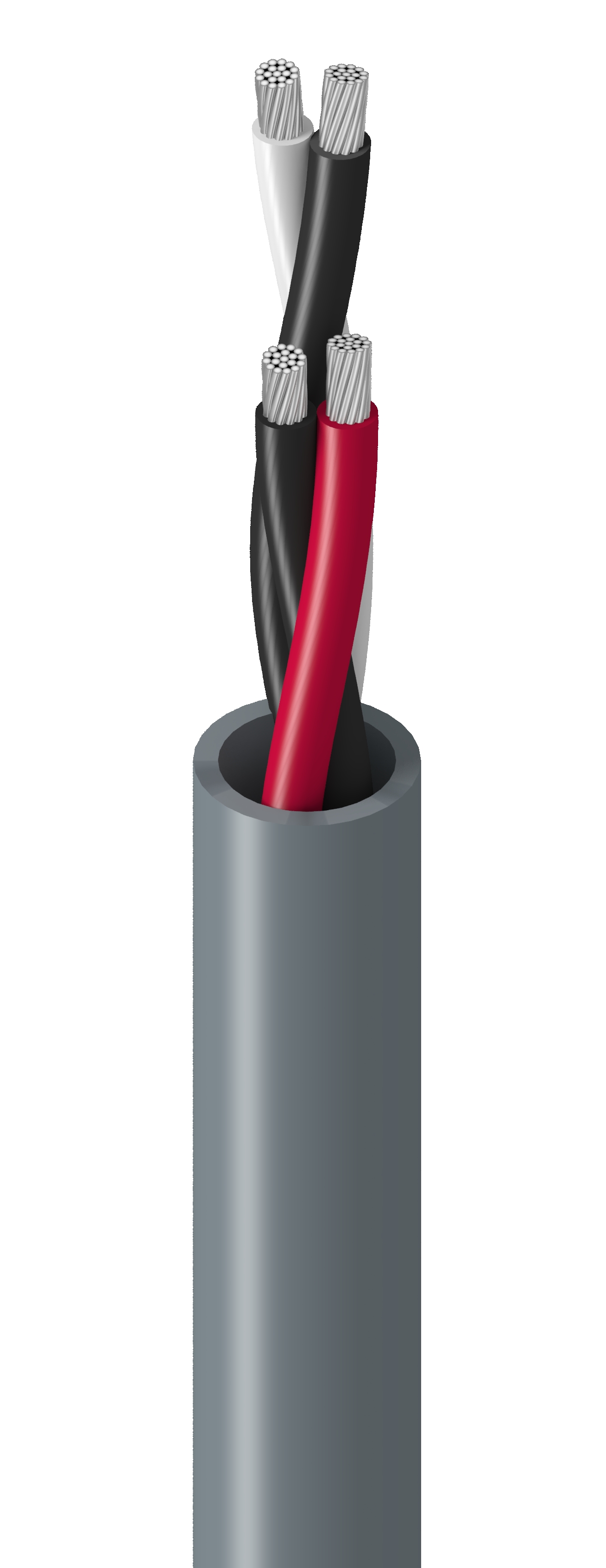

Electronic, 2 Pr #18 Str TC, PVC Ins, LSZH Jkt, CMG
Electronic, 2 Pair 18AWG (16x30) Tinned Copper, PVC Insulation, LSZH Outer Jacket, CMG
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9156ZH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 9156ZH 0101000 | Black | 612825382188 | Order online |
| 9156ZH 010500 | Black | 612825382195 | Order online |
Specifications
Construction Details
| Overall Cable Diameter (Nominal) | 0.333 in |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 2 |
| Size | 18 AWG |
| Stranding | 16x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.013 in (0.33 mm) |
| Nom. Insulation Diameter | 0.073 in (1.9 mm) |
| Color Code | Black & Red, Black & White |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.035 in (0.89 mm) |
| Nom. Diameter | 0.333 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 7.2 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 17.5 pF/ft (57.4 pF/m) |
| Max. Current | 11.2 Amps per Conductor at 30oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 83.2 lbs (37.7 kg) |
|---|---|
| Bulk Cable Weight | 65 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C to 75°C |
Bend Radius
| Stationary Min. | 3.33 in (84.6 mm) |
|---|---|
| Installation Min. | 3.33 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 FT4 Loading, FT4 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 21307 |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.344 Revision Date: 09-07-2025 |
|---|
Resources
