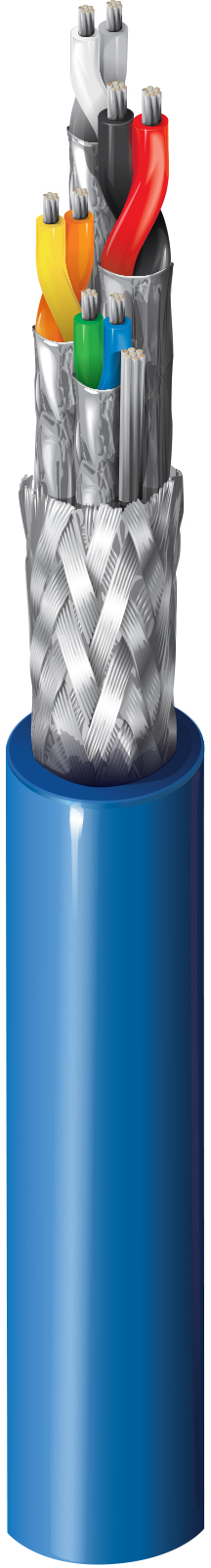

Transceiver 10BASE5, #20-4pr, FEP, PVC Jkt, CMP
IEEE 802.3 Ethernet Transceiver 10BASE5, 20 AWG stranded (7x28) tinned copper conductors, FEP insulation, twisted pairs, individual Beldfoil® shields (100% coverage), overall polyester isolation tape and Duofoil® shield + a tinned copper braid shield (95% coverage), fluorocopolymer jacket, plenum rated.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
89892 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 89892 0011000 | Brown | 612825221388 | Order online |
| 89892 001500 | Brown | 612825221395 | Order online |
Specifications
Product Overview
| Suitable Applications | 10Base5 Transceiver |
|---|
Physical Characteristics (Overall)
| Conductor Count | 8 |
|---|
Conductor
| AWG | 20 |
|---|---|
| Stranding | 7x28 |
| Material | TC - Tinned Copper |
| No. of Pairs | 4 |
Insulation
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Material Trade Name | Teflon® |
| Nominal Wall Thickness | 0.011 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Gray & White |
| 2 | Yellow & Orange |
| 3 | Blue & Green |
| 4 | Red & Black |
Inner Shield
| Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Material Trade Name | Beldfoil® (Z-Fold®) |
| Coverage [%] | 100% |
| Drainwire Material | TC - Tinned Copper |
| Drainwire AWG | 22 |
| Drainwire Construction n x D | 7x30 |
Outer Shield
| Type | Layer | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|---|
| Tape | 1 | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| Braid | 2 | Tinned Copper (TC) | 95% |
Outer Jacket
| Material | PVDF - Polyvinylidene Fluoride |
|---|---|
| Nominal Diameter | 0.359 in |
| Nominal Wall Thickness | 0.014 in |
| Separator Material | Polyester Tape |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 9.5 Ohm/1000ft |
|---|---|
| Nominal Outer Shield DCR | 1.5 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor | 16.7 pF/ft |
|---|---|
| Nom. Capacitance Conductor to Other Conductor to Shield | 29.5 pF/ft |
Inductance
| Nominal Inductance | 0.2 μH/ft |
|---|
Impedance
| Nominal Characteristic Impedance | 78 Ohm |
|---|---|
| Nominal Characteristic Tolerance | ± 5 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] | 10 MHz |
|---|---|
| Nom. Insertion Loss | 6 dB/100m |
Delay
| Max. Delay Skew | 78 ns/100m |
|---|---|
| Nominal Delay | 1.3 ns/ft |
| Nominal Velocity of Propagation (VP) [%] | 78% |
High Frequency
| Max. Insertion Loss (Attenuation) | 6 dB/100m |
|---|
Current
| Max. Recommended Current [A] | 2.8 Amps per Conductor at 25oC |
|---|
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| UL Temperature Rating | 150°C |
|---|---|
| Operating Temperature Range | -40°C To +150°C |
Mechanical Characteristics
| Bulk Cable Weight | 90 lbs/1000ft |
|---|---|
| Maximum Recommended Pulling Tension | 175 lbs |
| Minimum Minor Axis Bend Radius | 3.75 in |
Standards
| Customer Reference Document | DEC Part No. 17-00321-02 |
|---|---|
| NEC/(UL) Compliance | CMP |
| CEC/C(UL) Compliance | CMP |
| IEEE Compliance | IEEE 802.3 10Base5 |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| EU CE Mark | Yes |
| MII Order #39 (China RoHS) | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | NFPA 262 Plenum Flame Test (UL910) |
|---|---|
| CSA Flammability | FT6 |
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | Yes |
|---|
Related Part Numbers
| Non-Plenum Number | 9901 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
Product Notes
| Notes | Teflon« is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc. |
|---|
History
| Update and Revision | Revision Number: 0.356 Revision Date: 02-03-2025 |
|---|
