POS Cable, #22-2pr, BC, FEP, O/A Foil+55% TC Braid, FEP Jkt, CMP

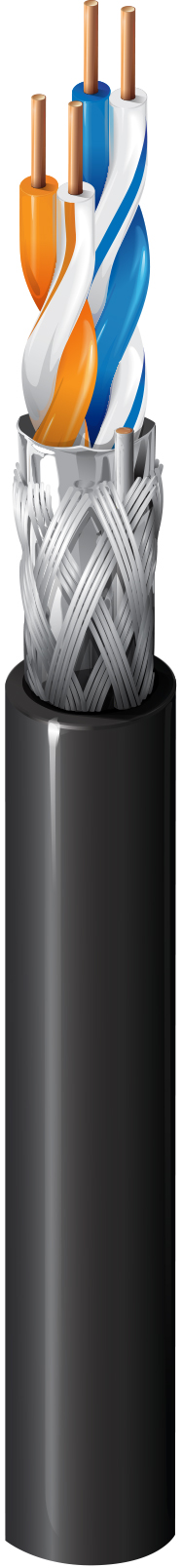

Computer POS Cable, 22 AWG solid bare copper conductors, solid FEP insulation, twisted pairs, overall Beldfoil® (100% coverage) + tinned copper braid shield (55% coverage), 22 AWG solid tinned copper drain wire, FEP jacket, plenum rated
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
89696 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 89696 0101000 | Black | 612825221081 | C | Order online |
Specifications
Product Overview
| Suitable Applications | point of sale; rs-485 applications; extreme high/low temperature environments; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring |
|---|
Construction Details
| Outer Shield Table Notes | Polyester Tape |
|---|
Conductor
| Size | 22 |
|---|---|
| Stranding | Solid |
| Material | TC - Tinned Copper |
Insulation
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Color Code | Blue & White with Blue Stripe, Orange & White with Orange Stripe |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 55% |
Outer Jacket
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Nom. Diameter | 0.262 in |
Electrical Characteristics
| Nom Outer Shield DCR | 4.2 Ohm/1000ft (14 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 16.5 Ohm/1000ft (54.1 Ohm/km) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 15.5 pF/ft (50.9 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 27 pF/ft (89 pF/m) |
| Nom. Characteristic Impedence | 100 Ohm |
| Nom. Delay | 1.46 ns/ft |
| Nom. Inductance | 0.15 μH/ft (0.49 μH/m) |
| Nom. Velocity of Prop. | 70% |
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Mechanical Characteristics
| Max. Pull Tension | 65 lbs (29 kg) |
|---|---|
| Bulk Cable Weight | 41.1 lbs/1000ft (61.2 kg/km) |
Temperature
| Operating | -70°C To +200°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | NFPA 262 Plenum Flame Test (UL910), FT6 |
|---|---|
| NEC / UL Compliance | CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 9696 |
Product Notes
| Notes | Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc. |
|---|
History
| Update and Revision | Revision Number: 0.340 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
