RS232/422 Low Cap, #24-7.5pr, FFEP, O/A Foil, PVDF Jkt, CMP, 100Ω

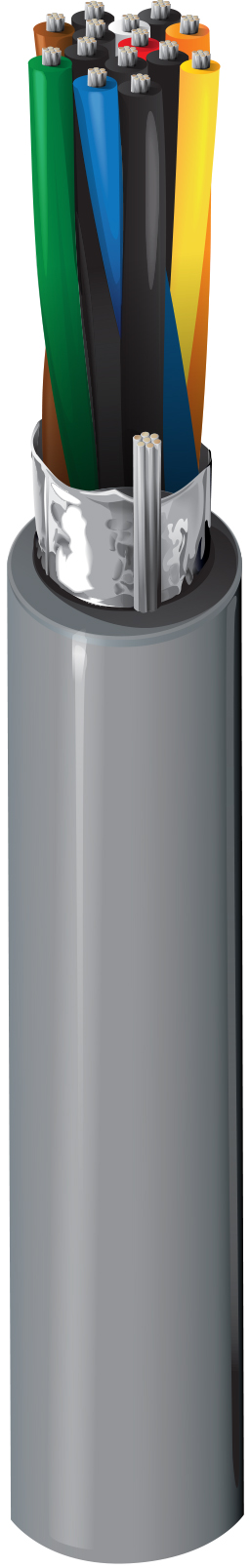

Computer EIA RS-232/422 Cable, 7.5-Pair, 24 AWG stranded (7x32) tinned copper conductors, foam FEP insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, fluorocopolymer jacket, plenum rated
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
88107 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 88107 0081000 | Gray | 612825216742 | C | Order online |
| 88107 008500 | Gray | 612825216759 | C | Order online |
Specifications
Product Overview
| Suitable Applications | extreme high temperature environments; rs-232 extended distance applications; rs-422 applications; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.305 in (7.75 mm) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 7 | 24 AWG | 7x32 | TC - Tinned Copper |
| Conductor(s) | 1 | 24 AWG | 7x32 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | FEP - Fluorinated Ethylene Propylene (Foam) | 0.015 in (0.38 mm) | 0.054 in (1.4 mm) | Western Electric Standard |
| Conductor(s) | FEP - Fluorinated Ethylene Propylene (Foam) | 0.015 in (0.38 mm) | 0.054 in (1.4 mm) | White |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (7x32) TC |
Outer Jacket
| Material | PVDF - Polyvinylidene Fluoride |
|---|---|
| Nom. Thickness | 0.014 in (0.36 mm) |
| Nom. Diameter | 0.305 in (7.75 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 13.29 Ohm/1000ft (43.60 Ohm/km) |
|---|
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Delay | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|---|---|
| Pair(s) | 28.8 Ohm/1000ft | 12.95 pF/ft (42.49 pF/m) | 23.3 pF/ft (76.4 pF/m) | 100 Ohm | 1.3 ns/ft | 0.21 μH/ft (0.69 μH/m) | 78% | 1.96 Amps per Conductor at 25oC |
| 1.96 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V (CMP) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 82 lbs (37 kg) |
|---|---|
| Bulk Cable Weight | 55 lbs/1000ft |
Temperature
| UL Temperature | 150°C |
|---|---|
| Operating | -20°C to +150°C |
Bend Radius
| Stationary Min. | 3.0 in (76 mm) |
|---|---|
| Installation Min. | 3.0 in (76 mm) |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | NFPA 262 (UL910), FT6 |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.434 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
