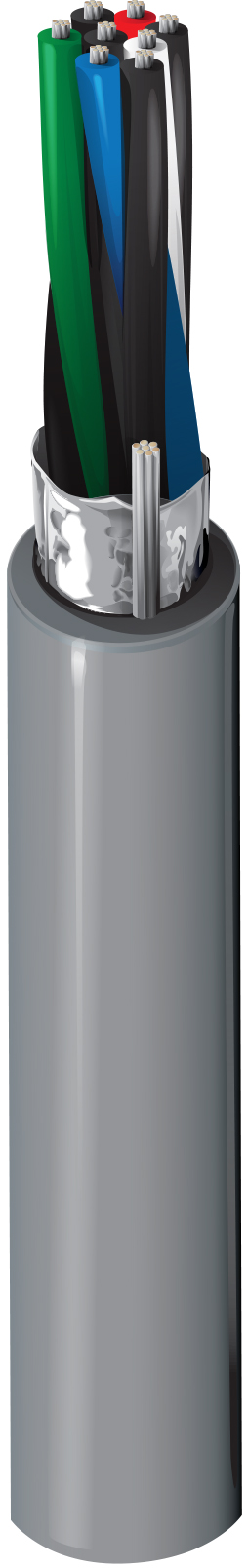

RS232/422 Low Cap, #24-4pr, FFEP, O/A Foil, PVDF Jkt, CMP, 100Ω
Computer EIA RS-232/422 Cable, 4-Pair, 24 AWG stranded (7x32) tinned copper conductors, foam FEP insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, fluorocopolymer jacket, plenum rated
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
88104 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 88104 0081000 | Gray | 612825216681 | C | Order online |
| 88104 008500 | Gray | 612825216698 | C | Order online |
Specifications
Product Overview
| Suitable Applications | extreme high temperature environments; rs-232 extended distance applications; rs-422 applications; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.259 in (6.58 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 4 |
| Size | 24 AWG |
| Stranding | 7x32 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | FEP - Fluorinated Ethylene Propylene (Foam) |
| Nom. Thickness | 0.015 in (0.38 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (7x32) TC |
Outer Jacket
| Material | PVDF - Polyvinylidene Fluoride |
|---|---|
| Nom. Thickness | 0.014 in (0.36 mm) |
| Nom. Diameter | 0.259 in (6.58 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 14 Ohm/1000ft (46 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 24 Ohm/1000ft (79 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 12.95 pF/ft (42.49 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 23.3 pF/ft (76.4 pF/m) |
| Nom. Characteristic Impedence | 100 Ohm |
| Nom. Delay | 1.3 ns/ft |
| Nom. Inductance | 0.21 μH/ft (0.69 μH/m) |
| Nom. Velocity of Prop. | 78% |
| Max. Current | 1.54 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V (CMP) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 49 lbs (22 kg) |
|---|---|
| Bulk Cable Weight | 34 lbs/1000ft (51 kg/km) |
Temperature
| UL Temperature | 150°C |
|---|---|
| Operating | -20°C to +150°C |
Standards and Compliance
| Flammability / Reaction to Fire | NFPA 262 Plenum Flame Test (UL910) |
|---|---|
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.322 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
