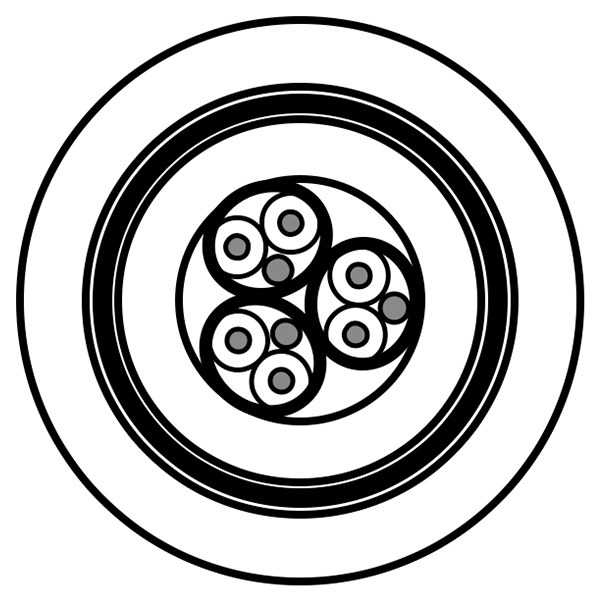

Audio, Control & Instrument, #22-3pr, PP, Indiv. Foil, LSZH Jkt, SWA
Audio, Control & Instrument Cable, 3-Pair, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, individually shielded pairs (100% coverage), 22 AWG stranded tinned copper drain wire, LSZH jacket, Steel Wire Armor
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
8777LS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 8777LS.00500 | Black | Reel | 500 m | 8719605019578 | Order online |
| 8777LS.001000 | Black | Reel | 1,000 m | 8719605019561 | Order online |
| 8777LS.K01000 | Black | Reel | 1,000 m | 8719605019585 | Order online |
Specifications
Product Overview
| Suitable Applications | low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; computer communication; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 11.5 mm (0.453 in) |
|---|
Conductor
| Size | 22 |
|---|---|
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PP - Polypropylene | 1.27 mm (0.0500 in) | Black & Red, Black & White, Black & Green |
| Red, Green, Blue |
Inner Shield
| Shield Type | Material | Coverage | Drainwire Type | Notes |
|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC | each pair |
| Polyester | each pair |
Outer Shield
| Material | Bi-Laminate (Alum+Poly) |
|---|
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.89 mm (0.035 in) |
| Nom. Diameter | 7 mm (0.28 in) |
| Color | Chrome (RAL 7037) |
Armor
| Armor Type & Material | SWA - Steel Wire Armor |
|---|---|
| Armor Thickness | 0.9 mm |
| Coverage | Min. 95% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 1.35 mm (0.0531 in) |
| Nom. Diameter | 11.5 mm (0.453 in) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 49.2 Ohm/km (15.0 Ohm/1000ft) |
|---|---|
| Nom. Inner Shield DCR | 34.8 Ohm/km (10.6 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Cond | 98.4 pF/m (30.0 pF/ft) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 180.4 pF/m (54.99 pF/ft) |
| Nom. Characteristic Impedence | 50 Ohm |
| Nom. Inductance | 0.59 μH/m (0.18 μH/ft) |
| Max. Current | 2 A |
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
Temperature
| Operating | -45°C To +80°C |
|---|---|
| Installation | -15°C To +80°C |
| Storage | -45°C To +80°C |
Bend Radius
| Installation Min. | 115 mm (4.53 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor Indoor/Outdoor Outdoor Indoor/Outdoor - Euroclass Eca, Outdoor, Sunlight Resistance, Oil Resistance - IRM 902 70°Cx4h, Oil Resistance - IEC 60811-404 |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-3-24 |
| CENELEC Compliance | EN 50290-2-20 |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60% |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.318 Revision Date: 07-23-2026 |
|---|
