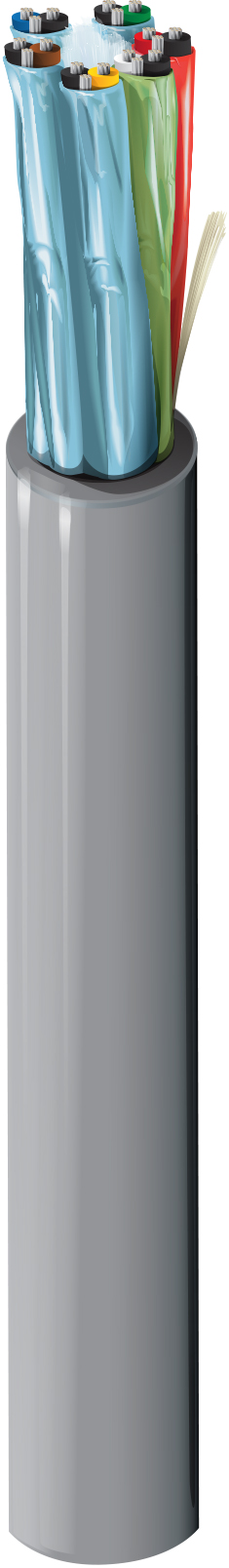

Audio, Control & Instrument, #22-6pr, FEP, Indiv. Foil, PVDF Jkt, CMP
Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductor, FEP insulation, 6 twisted pairs individually shielded with Beldfoil® (100% coverage), overall jacket per table below, 22 AWG stranded tinned copper drain wire.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
87778 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 87778 0021000 | Red | 612825216223 | C | Order online |
| 87778 002500 | Red | 612825216230 | C | Order online |
Specifications
Product Overview
| Suitable Applications | extreme high temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; voice communications; panel wiring |
|---|
Construction Details
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 6 |
| Size | 22 |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Nom. Thickness | 0.01 in (0.25 mm) |
| Nom. Insulation Diameter | 0.049 in (1.2 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown |
Inner Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 22 AWG (19x34) TC |
Outer Jacket
| Material | PVDF - Polyvinylidene Fluoride |
|---|---|
| Nom. Thickness | 0.014 in (0.36 mm) |
| Nom. Diameter | 0.309 in (7.85 mm) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 18.2 Ohm/1000ft |
|---|---|
| Max. Conductor DCR | 160 Ohm/km |
| Nom. Inner Shield DCR | 10.46 Ohm/1000ft (34.32 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 31 pF/ft (100 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 67 pF/ft (220 pF/m) |
| Nom. Characteristic Impedence | 50 Ohm |
| Nom. Inductance | 0.18 μH/ft (0.59 μH/m) |
| Nom. Velocity of Prop. | 69% |
| Max. Current | 1.96 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 109.2 lbs (49.53 kg) |
|---|---|
| Bulk Cable Weight | 68 lbs/1000ft |
Temperature
| UL Temperature | 150°C |
|---|---|
| Operating | -20°C To +150°C |
Bend Radius
| Stationary Min. | 3.09 in (78.5 mm) |
|---|---|
| Installation Min. | 3.09 in (78.5 mm) |
Standards and Compliance
| Flammability / Reaction to Fire | NFPA 262 (UL910), FT6 |
|---|---|
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 8778 |
History
| Update and Revision | Revision Number: 0.457 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
