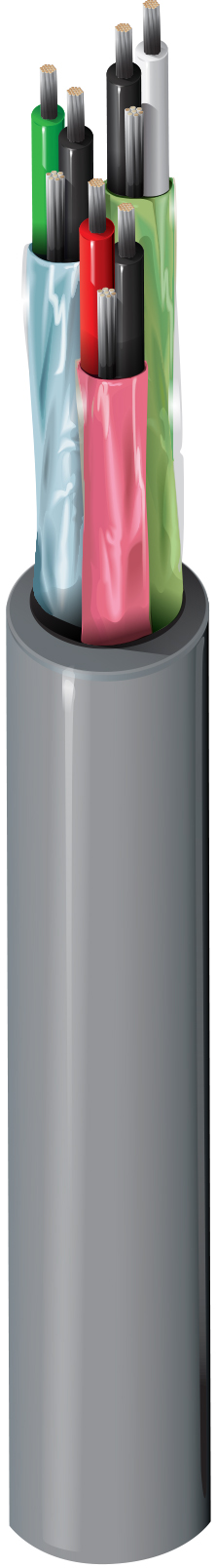

Audio, Control & Instrument, #22-3pr, FEP, Indiv. Foil, PVDF Jkt, CMP
Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductor, FEP insulation, twisted pairs individually shielded with Beldfoil® (100% coverage), overall jacket per table below, 22 AWG stranded tinned copper drain wire.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
87777 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 87777 0021000 | Red | 612825216209 | Order online |
| 87777 002500 | Red | 612825216216 | Order online |
Specifications
Product Overview
| Suitable Applications | extreme high temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; voice communications; panel wiring |
|---|
Physical Characteristics (Overall)
| Conductor Count | 6 |
|---|
Conductor
| AWG | 22 |
|---|---|
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
| Nominal Diameter | 0.03 in |
| No. of Pairs | 3 |
Insulation
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Nominal Wall Thickness | 0.01 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Black & Red |
| 2 | Black & White |
| 3 | Black & Green |
Inner Shield
| Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Material Trade Name | Beldfoil® (Z-Fold®) |
| Coverage [%] | 100% |
| Drainwire Material | TC - Tinned Copper |
| Drainwire AWG | 22 |
| Drainwire Construction n x D | Stranded |
Outer Shield
| Material | No Shield |
|---|---|
| Drainwire AWG | 22 |
Outer Jacket
| Material | PVDF - Polyvinylidene Fluoride |
|---|---|
| Nominal Diameter | 0.234 in |
| Nominal Wall Thickness | 0.014 in |
Electrical Characteristics
Conductor DCR
| Individual Pair Nominal Shield DCR | 11.3 Ohm/1000ft |
|---|---|
| Max. Conductor DCR | 160 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor | 31 pF/ft |
|---|---|
| Nom. Capacitance Conductor to Other Conductor to Shield | 67 pF/ft |
Inductance
| Nominal Inductance | 0.18 μH/ft |
|---|
Impedance
| Nominal Characteristic Impedance | 50 Ohm |
|---|
Delay
| Max. Delay Skew | 69 ns/100m |
|---|---|
| Nominal Delay | 1.47 ns/ft |
| Nominal Velocity of Propagation (VP) [%] | 69% |
Current
| Max. Recommended Current [A] | 3.5 Amps per Conductor at 25oC |
|---|
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| Operating Temperature Range | -20°C To +150°C |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 36 lbs/1000ft |
|---|---|
| Maximum Recommended Pulling Tension | 82 lbs |
| Minimum Minor Axis Bend Radius | 2.5 in |
Standards
| NEC/(UL) Compliance | CMP |
|---|---|
| CEC/C(UL) Compliance | CMP |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| EU CE Mark | Yes |
| MII Order #39 (China RoHS) | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | NFPA 262 Plenum Flame Test (UL910) |
|---|---|
| CSA Flammability | FT6 |
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | Yes |
|---|
Related Part Numbers
| Non-Plenum Number | 8777 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
History
| Update and Revision | Revision Number: 0.348 Revision Date: 02-03-2025 |
|---|
