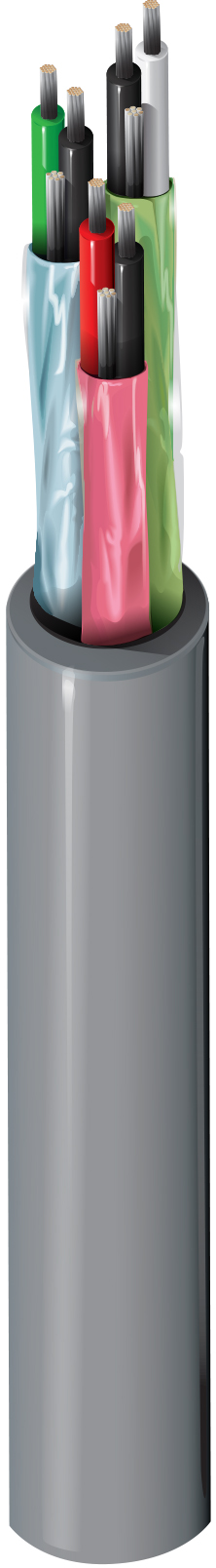

Audio, Control & Instrument, #22-3pr, PVC, Indv. Foil, PVC Jkt, CMG
Audio, Control & Instrument Cable, 22 AWG solid conductors, PVC insulation, tinned copper, twisted pairs, individually shielded with Beldfoil® (100% coverage), 22 AWG solid tinned copper drain wire, overall PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
8767 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8767 060500 | Chrome | Reel | 500 ft | 612825215493 | Order online |
| 8767 060U500 | Chrome | UnReel | 500 ft | 612825215479 | Order online |
| 8767 0601000 | Chrome | Reel | 1,000 ft | 612825215486 | Order online |
Specifications
Product Overview
| Suitable Applications | low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; computer communication; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.279 in |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 3 |
| Size | 22 AWG |
| Stranding | Solid |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.013 in (0.33 mm) |
| Nom. Insulation Diameter | 0.052 in (1.3 mm) |
| Color Code | Black & Red, Black & White, Black & Green |
Inner Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 22 AWG (Solid) TC |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.037 in (0.94 mm) |
| Nom. Diameter | 0.279 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 20.6 Ohm/1000ft |
|---|---|
| Nom. Inner Shield DCR | 13.2 Ohm/1000ft (43.3 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 40 pF/ft (130 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 77 pF/ft (250 pF/m) |
| Nom. Inductance | 0.19 μH/ft (0.62 μH/m) |
| Max. Current | 4.2 Amps per Conductor at 30oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 54.6 lbs (24.8 kg) |
|---|---|
| Bulk Cable Weight | 42 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -20°C to +80°C |
Bend Radius
| Stationary Min. | 2.79 in (70.9 mm) |
|---|---|
| Installation Min. | 2.79 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 FT4 Loading, FT4 |
| NEC / UL Compliance | Article 800, CMG, MPG |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | CMG, MPG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.341 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
