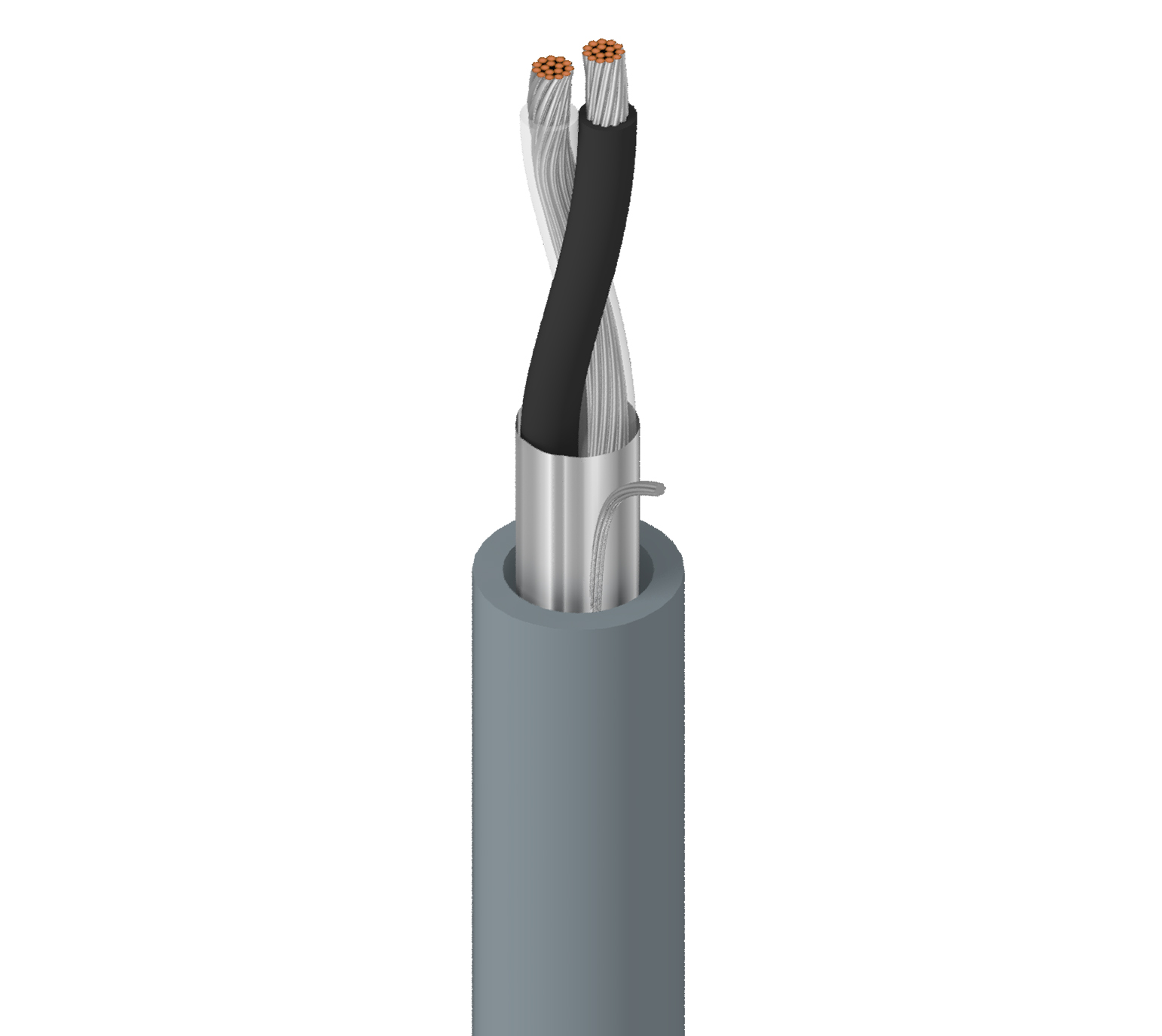

Electronic, 2 C #18 Str TC, PO Ins, OS, LSZH Jkt, CMG
Electronic, 2 Conductor 18AWG (16x30) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, LSZH Outer Jacket, CMG
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
8760ZH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8760ZH 060500 | Chrome | Reel | 500 ft | 612825382362 | Order online |
| 8760ZH 0601000 | Chrome | Reel | 1,000 ft | 612825382355 | Order online |
Specifications
Construction Details
| Overall Cable Diameter (Nominal) | 0.222 in. |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | 16x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene |
| Nom. Thickness | 0.0175 in (0.445 mm) |
| Nom. Insulation Diameter | 0.082 in (2.1 mm) |
| Color Code | Black & Clear |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 20 AWG (7x28) TC |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.028 in (0.71 mm) |
| Nom. Diameter | 0.222 in |
Electrical Characteristics
| Nom Outer Shield DCR | 7.52 Ohm/1000ft (24.7 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 6.5 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 29.8 pF/ft (97.8 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 44 pF/ft (140 pF/m) |
| Nom. Characteristic Impedence | 57 Ohm |
| Nom. Inductance | 0.180 μH/ft (0.591 μH/m) |
| Max. Current | 4.8 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 62 lbs (28 kg) |
|---|---|
| Bulk Cable Weight | 26 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 2.22 in (56.4 mm) |
|---|---|
| Installation Min. | 2.22 in |
Standards and Compliance
| Environmental Suitability | Indoor, Non-Halogenated |
|---|---|
| Flammability / Reaction to Fire | UL1685 FT4 Loading, FT4 |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 21305 |
| CEC / C(UL) Compliance | CMG. |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60% |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.203 Revision Date: 09-07-2025 |
|---|
