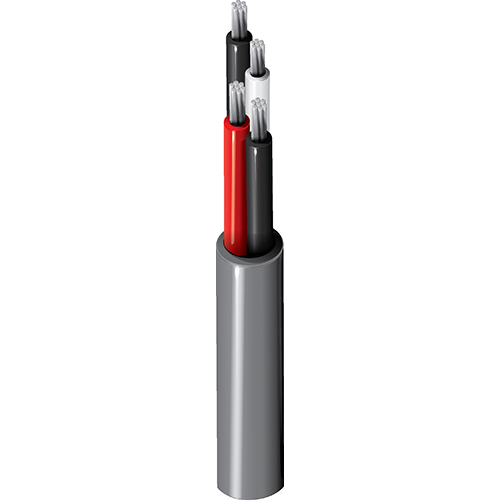

Electronic, 27 Pr #22 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 27 Pair 22AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
8750 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 8750 0601000 | Chrome | Reel | 1,000 ft | 612825215035 | C D | Order online |
Specifications
Product Overview
| Suitable Applications | low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; computer communication; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.575 in (14.6 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 27 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.011 in (0.28 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue, Green & Yellow, Green & Brown, Green & Orange, White & Blue, White & Yellow, White & Brown, White & Orange, Blue & Yellow, Blue & Brown, Blue & Orange, Brown & Yellow, Brown & Orange |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.045 in (1.1 mm) |
| Nom. Diameter | 0.575 in (14.6 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 14.7 Ohm/1000ft (48.2 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 25.5 pF/ft (83.7 pF/m) |
| Max. Current | 1.4 Amps per Conductor at 20oC |
Voltage
| UL Voltage Rating | 300 V (CMG), 150 V (UL AWM 2576) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 490 lbs (220 kg) |
|---|---|
| Bulk Cable Weight | 206 lbs/1000ft (307 kg/km) |
Temperature
| UL Temperature | 80°C (UL AWM 2576) |
|---|---|
| Operating | -20°C to +80°C |
Standards and Compliance
| Flammability / Reaction to Fire | UL1685 FT4 Loading |
|---|---|
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AMW 2576 |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.356 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP., D - FINAL PUT-UP LENGTH MAY VARY -0% TO +20% FROM LENGTH SHOWN. |
