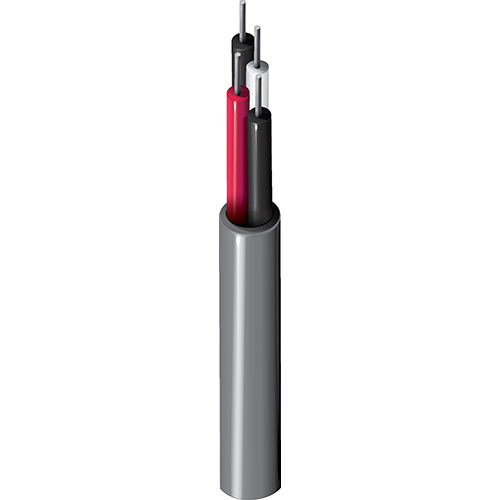

Electronic, 3 Pr #22 Sol TC, PVC Ins, PVC Jkt, CMG
Electronic, 3 Pair 22AWG (Solid) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
8742 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8742 0601000 | Chrome | Reel | 1,000 ft | 612825214915 | Order online |
| 8742 0605000 | Chrome | Reel | 5,000 ft | 612825214922 | Order online |
Specifications
Product Overview
| Suitable Applications | telephone cables; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); voice communications |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.242 in (6.15 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 3 |
| Size | 22 AWG |
| Stranding | Solid |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.010 in (0.25 mm) |
| Color Code | Black & Red, Black & White, Black & Green |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.032 in (0.81 mm) |
| Nom. Diameter | 0.242 in (6.15 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 16.5 Ohm/1000ft (54.1 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 30 pF/ft (98 pF/m) |
| Max. Current | 1.96 Amps per Conductor at 20oC |
Voltage
| UL Voltage Rating | 300 V (CMG), 150 V (UL AWM 2576) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 46 lbs (21 kg) |
|---|---|
| Bulk Cable Weight | 30 lbs/1000ft (45 kg/km) |
Temperature
| UL Temperature | 80°C (UL AWM 2576) |
|---|---|
| Operating | -20°C to +80°C |
Standards and Compliance
| Flammability / Reaction to Fire | UL1685 FT4 Loading |
|---|---|
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AMW 2576 |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 82742 (Stranded conductors) |
History
| Update and Revision | Revision Number: 0.327 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
