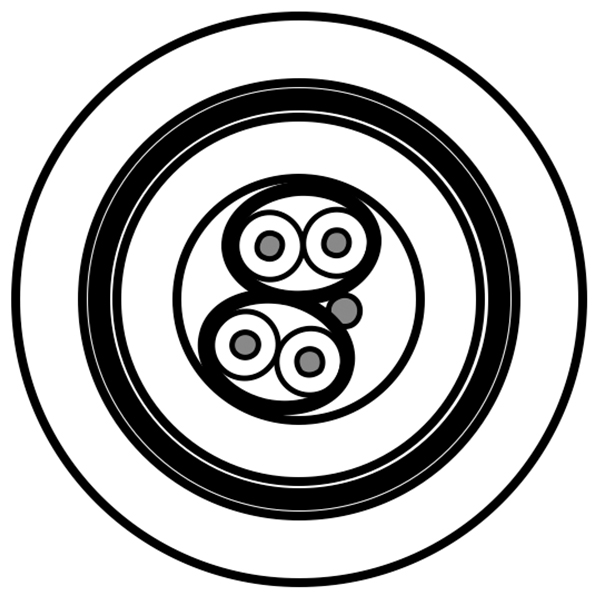

Electronic, 2PR #22 Str TC, PO ins, IF, LSZH Jkt, 300V, SWA
Electronic, 2 Pair AWG 22 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Individually Foiled + No Overall shielding, LSZH / FRNC jacket , 300V, SWA
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
8723LS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 8723LS.00500 | Black | Reel | 500 m | 8719605018694 | Order online |
| 8723LS.001000 | Black | Reel | 1,000 m | 8719605018687 | Order online |
Specifications
Product Overview
| Suitable Applications | Instrumentation and computer cable; For data transmission applications |
|---|
Construction Details
| Inner Jacket Table Notes | UV Stabilised |
|---|
Conductor
| Size | 22 |
|---|---|
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nom. Insulation Diameter | 1.17 mm (0.0461 in) |
| Color Code | Black & Red, Green & White |
Inner Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Drainwire Type | 24 AWG (7x32) TC |
| Notes | foil-out tape on each pair, one drain wire |
Outer Shield
| Material | Bi-Laminate (Alum+Poly) |
|---|
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.65 mm (0.026 in) |
| Nom. Diameter | 4.55 mm (0.179 in) |
| Color | Chrome (RAL 7037) |
Armor
| Armor Type & Material | SWA - Steel Wire Armor |
|---|---|
| Armor Thickness | 0.9 mm |
| Coverage | Min. 95% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 1.25 mm (0.0492 in) |
| Nom. Diameter | 8.8 mm (0.35 in) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 49.2 Ohm/km (15.0 Ohm/1000ft) |
|---|---|
| Nom. Inner Shield DCR | 54.5 Ohm/km (16.6 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Cond | 114.8 pF/m (34.99 pF/ft) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 203.4 pF/m (62.00 pF/ft) |
| Nom. Characteristic Impedence | 45 Ohm |
| Max. Current | 2.3 Amps per Conductor |
Mechanical Characteristics
Temperature
| Installation | -15°C To +80°C |
|---|---|
| Storage | -45°C To +80°C |
Bend Radius
| Installation Min. | 132 mm (5.20 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor Indoor/Outdoor Outdoor Indoor/Outdoor - Euroclass Eca, Sunlight Resistance, Oil Resistance - IEC 60811-404 |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-3-24 |
| CENELEC Compliance | EN 50290-2-20 |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60% |
History
| Update and Revision | Revision Number: 0.247 Revision Date: 07-23-2026 |
|---|
