Electronic, 2 C #14 Str TC, PE Ins, OS, SWA, LSZH Jkt, Eca
Electronic, 2 Conductor 14AWG (19x27) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, LSZH Outer Jacket, CPR Eca, SWA
- Availability
- Global
- Status
- Capability
Specifications
Product Overview
| Suitable Applications | Instrumentation and computer cable; For data transmission applications |
|---|
Product Life Cycle
| Life Cycle | Capability - the product is not yet standardly available for orders but can be manufactured |
|---|

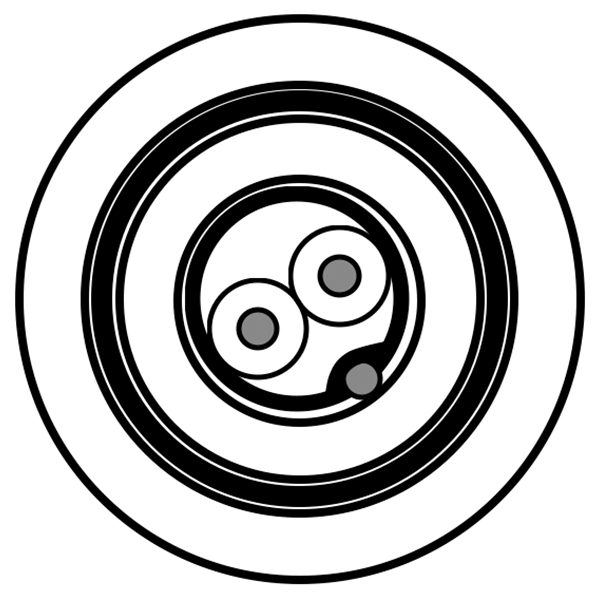

Construction Details
| Overall Cable Diameter (Nominal) | 9.0 mm (0.35 in) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 14 AWG |
| Stranding | 19x27 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene |
| Nom. Thickness | 0.8 mm (0.031 in) |
| Nom. Insulation Diameter | 3.55 mm (0.140 in) |
| Color Code | Black & Clear |
Inner Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Drainwire Type | 16 AWG (19x29) TC |
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.9 mm (0.035 in) |
| Nom. Diameter | 9.0 mm (0.35 in) |
| Color | Chrome (RAL 7037) |
Armor
| Armor Type & Material | SWA - Steel Wire Armor |
|---|---|
| Armor Thickness | 0.9 mm |
| Coverage | Min. 95% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 1.3 mm (0.051 in) |
| Nom. Diameter | 13.4 mm (0.528 in) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 9.3 Ohm/km (2.8 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Cond | 78 pF/m (24 pF/ft) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 154 pF/m (46.9 pF/ft) |
| Nom. Characteristic Impedence | 58 Ohm |
| Max. Current | 9.5 Amps per Conductor at 25oC |
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
Temperature
| Installation | -15°C To +80°C |
|---|---|
| Storage | -45°C To +80°C |
Bend Radius
| Stationary Min. | 135 mm (5.31 in) |
|---|---|
| Installation Min. | 270 mm (11 in) |
Standards and Compliance
| Environmental Suitability | Indoor Indoor/Outdoor, Indoor, Non-Halogenated, Sunlight Resistance |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-3-24 |
| CPR Compliance | CPR Euroclass: Eca |
| CENELEC Compliance | EN 50290-2-20 |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2) |
| UK Regulation Compliance | UKCA Mark |
Product Notes
| Notes | "This is a preliminary Technical Design Specification (TDS). The minimum business quantity to offer is 3km for the first order. This product will have Black as standard color and 305mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 8760LS. Please liaise with your Belden representative for confirmation." |
|---|
History
| Update and Revision | Revision Number: 0.6 Revision Date: 11-21-2025 |
|---|
