Electronic, 4 Pr #20 Str TC, ETFE Ins, OS, ETFE Jkt

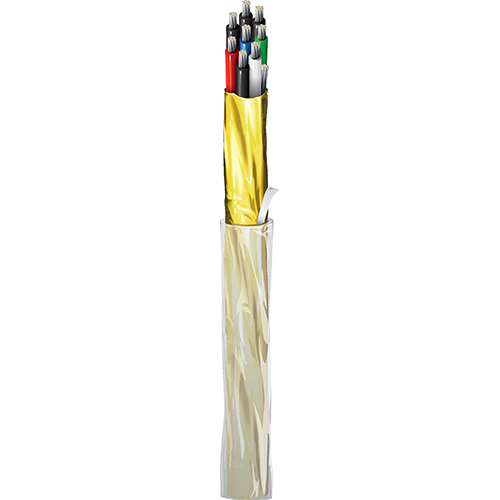

High Temperature Electronic, 4 Pair 20AWG (7x28) Tinned Copper, ETFE Insulation, Overall Beldfoil® Shield, ETFE Outer Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
85164 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 85164 368100 | Clear, Transparent | Reel | 100 ft | 612825210627 | C | Order online |
| 85164 3681000 | Clear, Transparent | Reel | 1,000 ft | 612825210634 | C | Order online |
Specifications
Product Overview
| Suitable Applications | extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); instrumentation |
|---|
Construction Details
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 4 |
| Size | 20 |
| Stranding | 7x28 |
| Material | TC - Tinned Copper |
Insulation
| Material | ETFE - Ethylene Tetrafluoroethylene |
|---|---|
| Nom. Thickness | 0.015 in (0.38 mm) |
| Nom. Insulation Diameter | 0.068 in (1.7 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Nomex®) |
| Coverage | 100% |
| Drainwire Type | 22 AWG (7x30) TC |
Outer Jacket
| Material | ETFE - Ethylene Tetrafluoroethylene |
|---|---|
| Nom. Thickness | 0.025 in (0.64 mm) |
| Nom. Diameter | 0.344 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 10.92 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 23 pF/ft (75 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 40 pF/ft (130 pF/m) |
| Nom. Characteristic Impedence | 73 Ohm |
| Nom. Inductance | 0.186 μH/ft (0.610 μH/m) |
| Max. Current | 6.4 Amps per Conductor at 25oC |
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 109.8 lbs (49.80 kg) |
|---|---|
| Bulk Cable Weight | 66 lbs/1000ft |
Temperature
| UL Temperature | 150°C |
|---|---|
| Operating | -60°C To +150°C |
Bend Radius
| Stationary Min. | 3.44 in (87.4 mm) |
|---|---|
| Installation Min. | 3.44 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| CPR Compliance | CPR Euroclass: Eca |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Tefzel and Kapton are DuPont trademarks. |
|---|
History
| Update and Revision | Revision Number: 0.390 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
