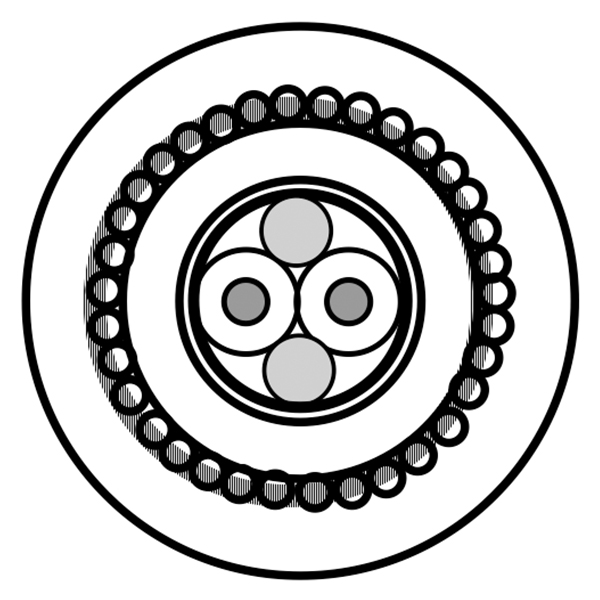

Electronic, 1PR #16 Str TC, PO ins, Unsh, LSZH Jkt, 300V, SWA
Electronic, 1 Pair AWG 16 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Unshielded shielding, LSZH / FRNC jacket , 300V, SWA
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
8471LS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 8471LS.00500 | Black | Reel | 500 m | 8719605018281 | Order online |
| 8471LS.001000 | Black | Reel | 1,000 m | 8719605018267 | Order online |
| 8471LS.K01000 | Black | Reel | 1,000 m | 8719605018298 | Order online |
| 8471LS.001500 | Black | Reel | 1,500 m | 8719605018274 | Order online |
Specifications
Product Overview
| Suitable Applications | Instrumentation and computer cable; For data transmission applications |
|---|
Construction Details
| Inner Jacket Table Notes | UV Stabilised |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 16 |
| Stranding | 19x29 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene |
| Nom. Thickness | 0.58 mm (0.023 in) |
| Nom. Insulation Diameter | 2.67 mm (0.105 in) |
| Color Code | Black & White |
| Notes | Flame Retardant |
Outer Shield
| Material | No Shield |
|---|
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.89 mm (0.035 in) |
| Nom. Diameter | 7.1 mm (0.28 in) |
| Color | Chrome (RAL 7037) |
Armor
| Armor Type & Material | SWA - Steel Wire Armor |
|---|---|
| Armor Thickness | 0.9 mm |
| Coverage | Min. 95% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 1.3 mm (0.051 in) |
| Nom. Diameter | 11.5 mm (0.453 in) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 14.7 Ohm/km (4.48 Ohm/1000ft) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 108.3 pF/m (33.01 pF/ft) |
| Max. Current | 7.1 Amps per Conductor |
Mechanical Characteristics
Temperature
| Storage | -30°C to +80°C |
|---|
Bend Radius
| Installation Min. | 172.5 mm (6.791 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor Indoor/Outdoor Outdoor Indoor/Outdoor - Euroclass Eca, Indoor, Non-Halogenated, Sunlight Resistance, Oil Resistance - IRM 902 70°Cx4h, Oil Resistance - IEC 60811-404 |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-3-24 |
| CPR Compliance | CPR Euroclass: Eca |
| CENELEC Compliance | EN 50290-2-20 |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60% |
| UK Regulation Compliance | UKCA Mark |
History
| Update and Revision | Revision Number: 0.246 Revision Date: 07-23-2026 |
|---|
