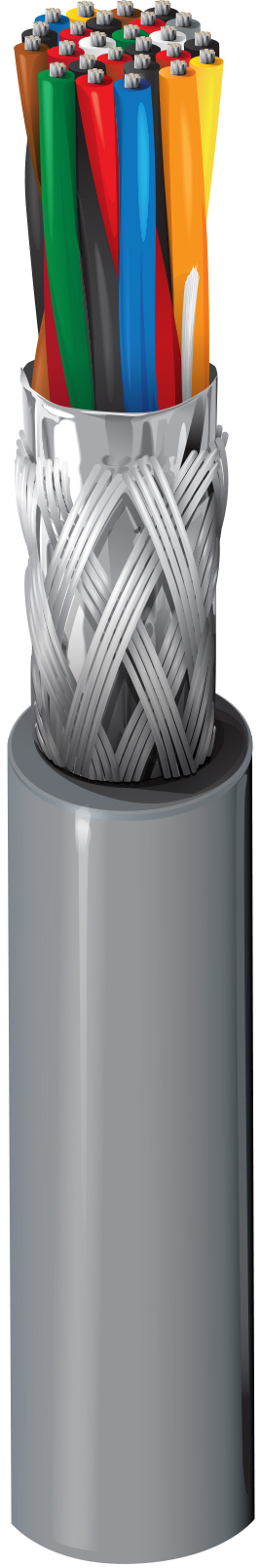

RS232, Low Cap, #24-15pr, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG
Computer EIA RS-232 Cable, 15-Pair, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
8345 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 8345 060500 | Chrome | Reel | 500 ft | 612825204718 | C | Order online |
| 8345 0601000 | Chrome | Reel | 1,000 ft | 612825204701 | C | Order online |
Specifications
Product Overview
| Suitable Applications | RS-232 extended distance applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.445 in (11.3 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 15 |
| Size | 24 AWG |
| Stranding | 7x32 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | SR-PVC - Polyvinyl Chloride (Semi-Rigid) |
| Nom. Thickness | 0.0105 in (0.267 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe, Red/Blue Stripe & Blue/Red Stripe, Red/Orange Stripe & Orange/Red Stripe, Red/Green Stripe & Green/Red Stripe, Red/Brown Stripe & Brown/Red Stripe, Red/Gray Stripe & Gray/Red Stripe, Black/Blue Stripe & Blue/Black Stripe, Black/Orange Stripe & Orange/Black Stripe, Black/Green Stripe & Green/Black Stripe, Black/Brown Stripe & Brown/Black Stripe, Black/Gray Stripe & Gray/Black Stripe |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 65% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.040 in (1.0 mm) |
| Nom. Diameter | 0.445 in (11.3 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 3.2 Ohm/1000ft (10 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 24 Ohm/1000ft (79 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 30 pF/ft (98 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 50 pF/ft (160 pF/m) |
| Nom. Characteristic Impedence | 75 Ohm |
| Nom. Velocity of Prop. | 60% |
| Max. Current | 1.1 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V (CMG), 300 V (UL AWM 2464) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 200 lbs (91 kg) |
|---|---|
| Bulk Cable Weight | 113 lbs/1000ft (168 kg/km) |
Temperature
| UL Temperature | 80°C (UL AWM 2464) |
|---|---|
| Operating | -30°C to +80°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 FT4 Loading |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 2464, AWM I A |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.315 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
