Electronic, 2 Pr #22 Str TC, FEP Ins, PVC Jkt, CMP

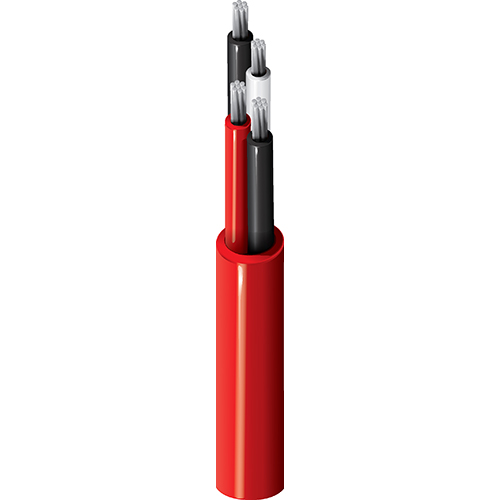

High Temperature Electronic, 2 Pair 22AWG (7x30) Tinned Copper, FEP Insulation, PVC Outer Jacket, CMP
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
82741 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 82741 8771000 | Natural | Reel | 1,000 ft | 612825197676 | C | Order online |
Specifications
Product Overview
| Suitable Applications | indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; voice communications; panel wiring |
|---|
Construction Details
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 2 |
| Size | 22 |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Nom. Thickness | 0.0065 in (0.17 mm) |
| Nom. Insulation Diameter | 0.042 in (1.1 mm) |
| Color Code | Black & Red, Black & White |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.014 in (0.36 mm) |
| Nom. Diameter | 0.179 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 17.8 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 21 pF/ft (69 pF/m) |
| Nom. Characteristic Impedence | 80 Ohm |
| Nom. Inductance | 0.15 μH/ft (0.49 μH/m) |
| Max. Current | 3.3 Amps per Conductor at 25oC (10°C Temperature Rise) |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 18 lbs (8.2 kg) |
|---|---|
| Bulk Cable Weight | 16 lbs/1000ft |
Temperature
| Operating | 0°C To +60°C |
|---|
Bend Radius
| Stationary Min. | 1.79 in (45.5 mm) |
|---|---|
| Installation Min. | 1.79 in |
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| Flammability / Reaction to Fire | NFPA 262, FT6 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 8741 |
History
| Update and Revision | Revision Number: 0.395 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
