RS232, #24-9pr, FEP, O/A Foil, LS-PVC Jkt, CMP

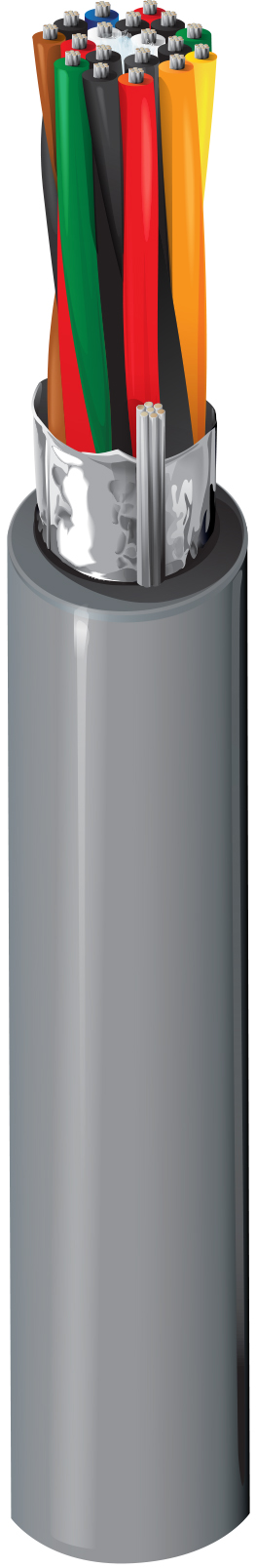

Computer EIA RS-232 Cable, 9-Pair, 24 AWG stranded (7x32) tinned copper conductors, FEP insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, Flamarrest® jacket, plenum rated
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
82509 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 82509 8771000 | Natural | 612825197263 | C | Order online |
Specifications
Product Overview
| Suitable Applications | indoor plenum applications; RS-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.246 in (6.25 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 9 |
| Size | 24 AWG |
| Stranding | 7x32 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | FEP - Fluorinated Ethylene Propylene |
| Nom. Thickness | 0.006 in (0.15 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (7x32) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.015 in (0.38 mm) |
| Nom. Diameter | 0.246 in (6.25 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 15 Ohm/1000ft (49 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 24.1 Ohm/1000ft (79.1 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 23 pF/ft (75 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 42 pF/ft (140 pF/m) |
| Nom. Inductance | 0.17 μH/ft (0.56 μH/m) |
| Max. Current | 1.5 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V (CMP) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 110 lbs (50 kg) |
|---|---|
| Bulk Cable Weight | 45 lbs/1000ft (67 kg/km) |
Temperature
| Operating | 0°C to +75°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | NFPA 262 Plenum Flame Test (UL910) |
|---|---|
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.299 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
