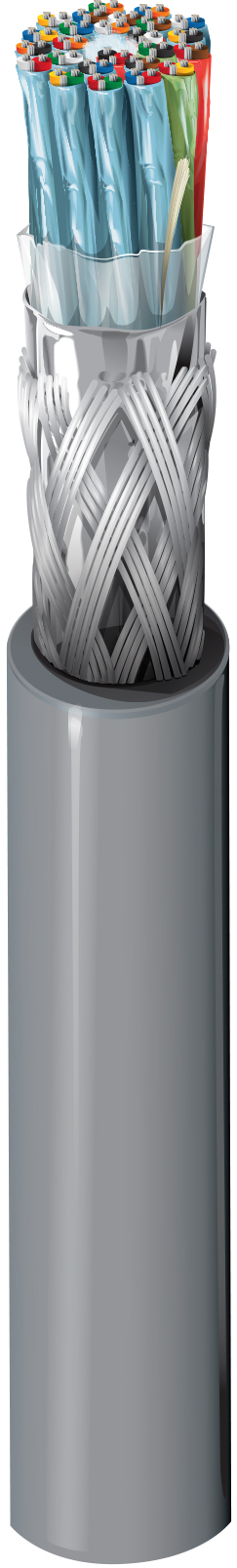

RS232/422 Low Cap, #24-15pr, FPO, Indiv.& O/A Foils+Braid, PVC Jkt, CM, 100Ω
Computer EIA RS-232/422, Digital Audio Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, 15 twisted pairs individually Beldfoil® shielded + overall 100% Beldfoil® + tinned copper braid shield (65% coverage), drain wire, PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
8175 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 8175 060100 | Chrome | Reel | 100 ft | 612825195818 | C | Order online |
| 8175 060500 | Chrome | Reel | 500 ft | 612825195832 | C | Order online |
| 8175 0601000 | Chrome | Reel | 1,000 ft | 612825195825 | C | Order online |
Specifications
Product Overview
| Suitable Applications | RS-232 Extended Distance & RS-422 Applications; Computer Communications; Low Voltage Analog signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, ...); Digital Audio; Panel Wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.665 in (16.9 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 15 |
| Size | 24 AWG |
| Stranding | 7x32 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Thickness | 0.019 in (0.48 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue |
Inner Shield
| Element | Pair(s) |
|---|---|
| Shield Type | Tape |
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (7x32) TC |
| Notes | each pair, Z-Fold® Foil-in |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 65% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.065 in (1.7 mm) |
| Nom. Diameter | 0.665 in (16.9 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 2.5 Ohm/1000ft (8.2 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 24 Ohm/1000ft (79 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 12.5 pF/ft (41.0 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 22 pF/ft (72 pF/m) |
| Nom. Characteristic Impedence | 100 Ohm |
| Nom. Velocity of Prop. | 78% |
| Max. Current | 1.1 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V (CM), 300 V (UL AWM 2493) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 322 lbs (146 kg) |
|---|---|
| Bulk Cable Weight | 194 lbs/1000ft (289 kg/km) |
Temperature
| UL Temperature | 60°C (UL AWM 2493) |
|---|---|
| Operating | -40°C to +60°C |
Bend Radius
| Stationary Min. | 6.7 in (170 mm) |
|---|---|
| Installation Min. | 6.7 in (170 mm) |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2493 |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight. |
|---|
History
| Update and Revision | Revision Number: 0.340 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
