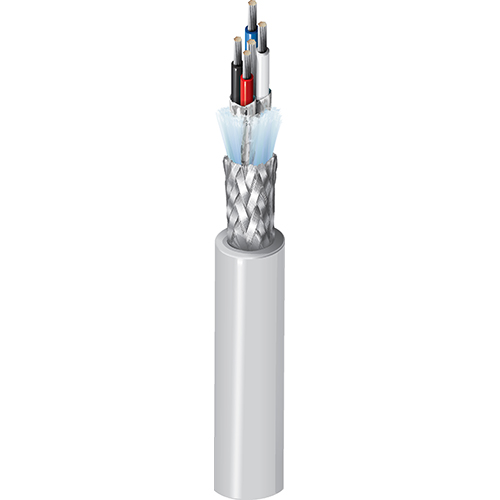

DeviceBus®, 2 Pr #16+18 Str TC, PVC-NYL+PP Ins, IS+OA TC Brd, PVC Jkt, 600V TC-ER
DeviceBus® for ODVA DeviceNetTM, 2 Pair 16+18AWG (19x29+19x30) Tinned Copper, PVC-NYL+PP Insulation, Individual Beldfoil® & OA Tinned Copper Braid(65%) Shield, PVC Outer Jacket, 600V TC-ER
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
7896A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 7896A T5U500 | Gray T5U | Reel | 500 ft | 612825190844 | C | Order online |
| 7896A T5U1000 | Gray T5U | Reel | 1,000 ft | 612825190820 | C | Order online |
| 7896A T5U2000 | Gray T5U | Reel | 2,000 ft | 612825190837 | C | Order online |
Specifications
Product Overview
| Suitable Applications | harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc. |
|---|
Construction Details
| Outer Jacket1 Table Notes | Jacket OD +/- 0.010 |
|---|---|
| Overall Cable Diameter (Nominal) | 0.525 in (13.3 mm) |
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Power Pair(s) | 1 | 16 AWG | 19x29 | TC - Tinned Copper |
| Data Pair(s) | 1 | 18 AWG | 19x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|---|---|
| Power Pair(s) | PVC/Nylon - Polyvinyl Chloride + Nylon | 0.022 in (0.56 mm) | 0.101 in (2.57 mm) | Red & Black | |
| Data Pair(s) | PP - Polypropylene | 0.033 in (0.84 mm) | 0.182 in (4.62 mm) | Blue & White | Flame Retardant |
Inner Shield
| Element | Shield Type | Material | Coverage |
|---|---|---|---|
| Power Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% |
| Data Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% |
Outer Shield
| Shield Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage | 70% |
| Drainwire Type | 16 AWG (19x29) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.060 in (1.5 mm) |
| Nom. Diameter | 0.525 in (13.3 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 1.8 Ohm/1000ft (5.9 Ohm/km) |
|---|
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Characteristic Impedence | Nom. Delay | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Power Pair(s) | 4.9 Ohm/1000ft | 8 Amps per Conductor at 25oC | ||||
| Data Pair(s) | 6.9 Ohm/1000ft (23 Ohm/km) | 14.7 pF/ft (48.2 pF/m) | 120 Ohm | 1.6 ns/ft | 75% |
Voltage
| UL Voltage Rating | 600 V (TC-ER) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 190 lbs (86 kg) |
|---|---|
| Bulk Cable Weight | 158 lbs/1000ft |
Temperature
| UL Temperature | 75°C Dry |
|---|---|
| Operating | -40°C to +75°C |
| Installation | -25°C To +75°C |
Bend Radius
| Stationary Min. | 5 in (130 mm) |
|---|---|
| Installation Min. | 5 in (130 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | UL 1685 UL Loading, FT1 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 336, TC-ER |
| AWM Compliance | AWM I/II A/B |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | ODVA Cable V |
Product Notes
| Notes | Meter marks on jacket to aid users in installation. ODVA DeviceNet is an Open DeviceNet Vendor Association, Inc. trademark. |
|---|
History
| Update and Revision | Revision Number: 0.595 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
