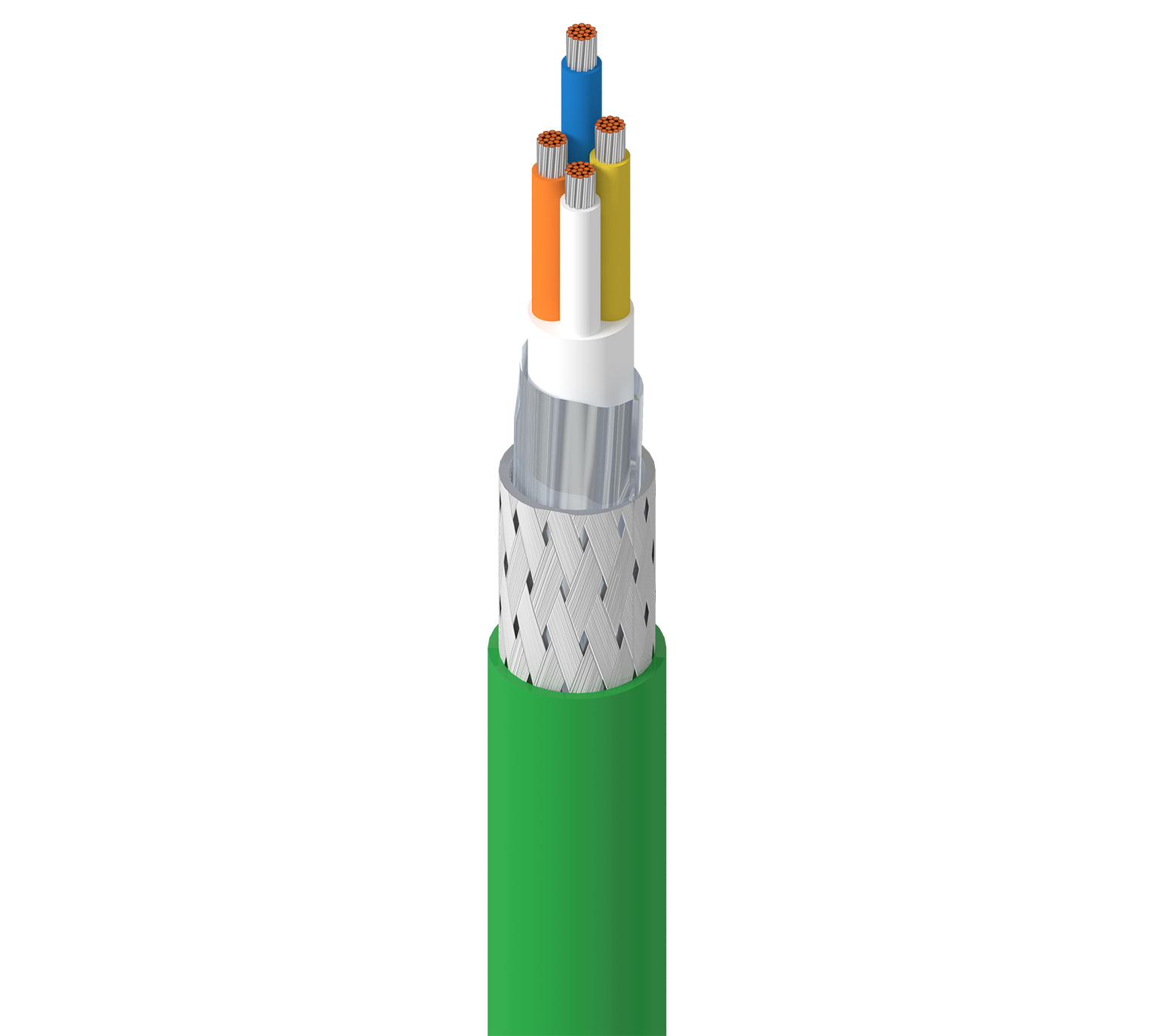

DataTuff® 5E, 1Q #22 Str TC, PO ins, F/B, PUR HF jkt, PROFINET type C, 5M Trailing
DataTuff® 5E, 1 Quad AWG 22 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil + Braid(s) shielding, PUR Halogen Free jacket , PROFINET type C, 5M trailing
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
70008PU is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 70008PU.01B100 | Green | Flat Box | 100 m | 8719605009463 | Order online |
| 70008PU.01305 | Green | Reel | 305 m | 8719605009449 | Order online |
| 70008PU.01500 | Green | Reel | 500 m | 8719605009456 | Order online |
| 70008PU.011000 | Green | Reel | 1,000 m | 8719605009432 | Order online |
Specifications
Product Overview
| Suitable Applications | PROFINET Cat5e, Flex trailing, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|
Construction Details
| Inner Jacket Table Notes | Bedding |
|---|---|
| Outer Jacket1 Table Notes | Jacket color green (RAL 6018) |
| Overall Cable Diameter (Nominal) | 6.5 mm (0.26 in) |
Conductor
| Size | 22 AWG |
|---|---|
| Stranding | 19x34 |
| Material | TC - Tinned Copper |
| No. of Pairs | 2 |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PP - Polypropylene | 1.63 mm (0.0642 in) | White & Blue & Yellow & Orange |
| 1 Quad |
Cable Core
| Description | 1 quad with center filler |
|---|
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 4.2 mm (0.17 in) |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Separator | non-Woven Tape |
|---|---|
| Material | PUR - Polyurethane (Halogen Free) |
| Nom. Diameter | 6.5 mm (0.26 in) |
Electrical Characteristics
| High Frequency Table Notes | Reference standard: ISO/IEC 11801 ed 2.0, Cat 5e |
|---|---|
| Transfer Impedance Class | Grade 1 |
| Screening Class | Type I |
| Screening Table Notes | Coupling Attenuation |
Electricals
| Max. Conductor DCR | 57.1 Ohm/km (17.4 Ohm/1000ft) |
|---|---|
| Nom. Characteristic Impedance | 100 Ohm |
Delay
| Max. Delay | 530 ns/100m |
|---|---|
| Nom. Velocity of Prop. | 68% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. SRL (Structural Return Loss) [dB] |
|---|---|---|---|---|
| 1 | 2.1 | 65 | 64 | |
| 4 | 4 | 56 | 52 | 23 |
| 10 | 6.3 | 50 | 44 | 25 |
| 16 | 8 | 47 | 40 | 25 |
| 31.25 | 11.4 | 43 | 34 | 23.6 |
| 62.5 | 16.5 | 38 | 28 | 21.5 |
| 100 | 21.3 | 35 | 24 | 20.1 |
Transfer Impedance
| Frequency | Max. Transfer Impedance |
|---|---|
| 1 MHz | Max. 10 mOhm/m |
| 10 MHz | Max. 10 mOhm/m |
| 30 MHz | Max. 30 mOhm/m |
| 100 MHz | 100 mOhm/m |
Voltage
| UL Voltage Rating | 300 V |
|---|---|
| Voltage Rating | 300 V |
Mechanical Characteristics
| Table Notes | Drag chain |
|---|---|
| Max. Pull Tension | 160 N (36 lbf) |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -40°C to +80°C |
| Installation | -5°C To +60°C |
| Storage | -40°C To +80°C |
| Continuous Flexing | -25°C To +60°C |
Trailing/Flexing Properties
| Motion | Number of Cycles | Radius | Speed | Acceleration | Traverse Length | Torsion Angle |
|---|---|---|---|---|---|---|
| Trailing/Bending | 5,000,000 | 60 mm | 3 m/s | 3 | ||
| Torsion/Twisting | 1,000,000 | 60 mm | 12 | 5 m | 180 ° |
Bend Radius
| Stationary Min. | 30 mm (1.2 in) |
|---|---|
| Installation Min. | 65 mm (2.6 in) |
| Flexing Min. | 65 mm (2.6 in) |
Standards and Compliance
| Environmental Suitability | Indoor, Indoor, Sunlight Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | Horizontal flametest |
| AWM Compliance | AWM 20549 |
| Data Category | Category 5e |
| ISO/IEC Compliance | ISO/IEC 11801 Ed. 2.2:2002/A2:2010/C1:2011 |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = Pass |
| European Directive Compliance | EU CE Mark |
| UK Regulation Compliance | UKCA Mark |
History
| Update and Revision | Revision Number: 0.386 Revision Date: 07-28-2026 |
|---|
