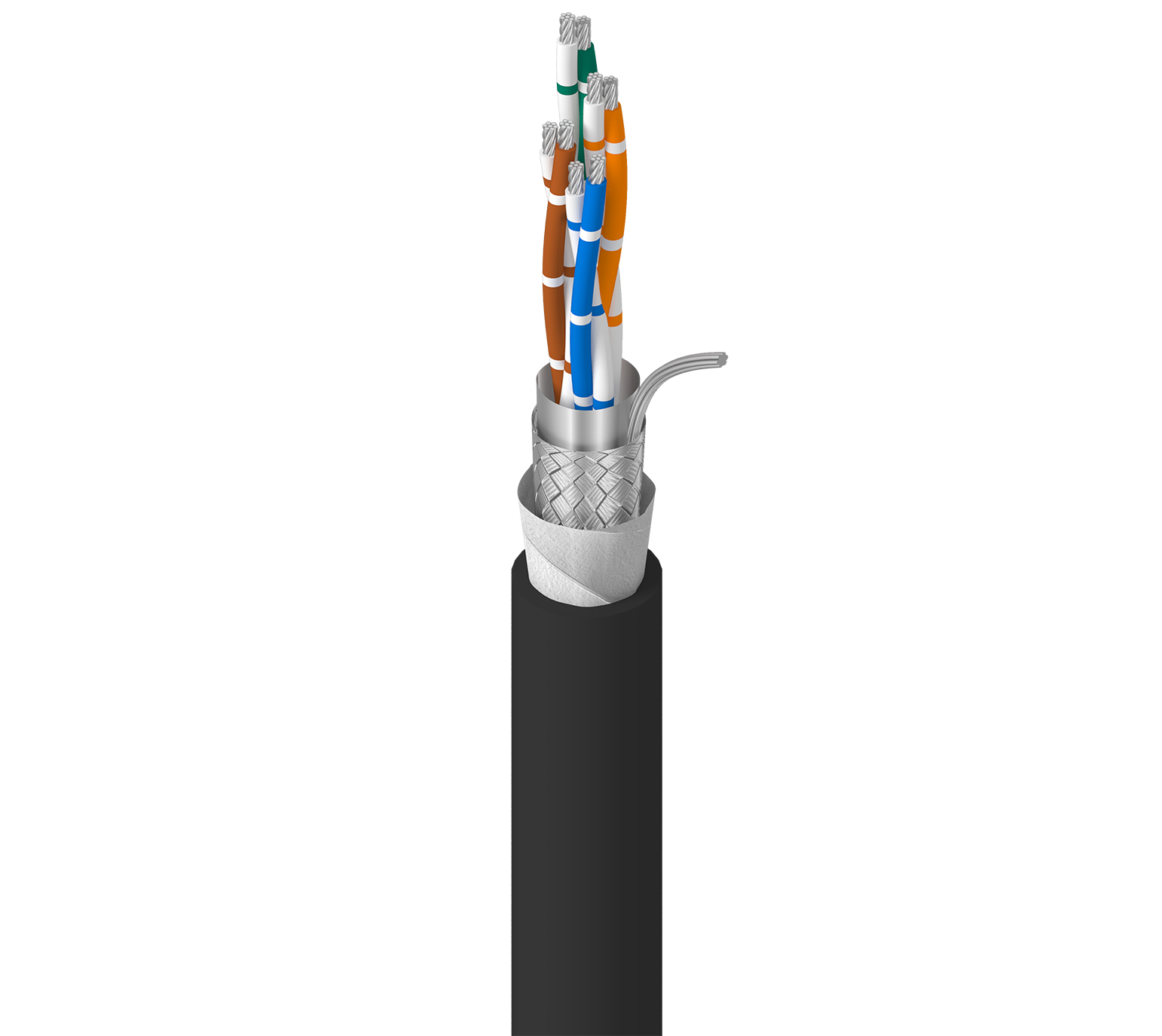

RS-485, 4 Pr, 22AWG, Str TC, PE Ins, OS+TC Brd, CPE Jkt, CM, PLTC, Sun Res, Dir Bur, Oil Resistant
RS-485, 120 Ohm, 4 pair 22AWG (7x30) tinned copper Datalene® insulaton, Overall Foil + 65% Tinned Copper Braid, CPE jacket, CM, PLTC, SUN RES DIR BUR and oil-resistant
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | direct burial, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc. |
|---|
Construction Details
| Waterblocking | Waterblock Tape |
|---|---|
| Overall Cable Diameter (Nominal) | 0.481 in (12.2 mm) |
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 4 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Thickness | 0.023 in (0.58 mm) |
| Nom. Insulation Diameter | 0.075 in (1.9 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe |
| Notes | HDPE |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC |
| Braid | Tinned Copper (TC) | 65% |
Outer Jacket
| Material | CPE - Chlorinated Polyethylene |
|---|---|
| Nom. Thickness | 0.053 in (1.3 mm) |
| Nom. Diameter | 0.481 in (12.2 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 2.95 Ohm/1000ft (9.68 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 14.7 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 11 pF/ft (36 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 20.9 pF/ft |
| Nom. Characteristic Impedence | 120 Ohm |
| Nom. Velocity of Prop. | 78% |
| Max. Current | 2.7 Amps per Conductor at 25oC |
High Frequency (Nominal/Typical)
| Element | Pair(s) |
|---|---|
| Frequency [MHz] | 1 |
| Nom. Insertion Loss (Attenuation) | 0.5 dB/100ft |
Voltage
| UL Voltage Rating | 300 V (CM, PLTC) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 80 lbs (36 kg) |
|---|---|
| Bulk Cable Weight | 86 lbs/1000ft |
Temperature
| UL Temperature | 90°C |
|---|---|
| Operating | -40°C to +90°C |
| Installation | -20°C to +90°C |
Bend Radius
| Stationary Min. | 4.8 in (120 mm) |
|---|---|
| Installation Min. | 4.8 in (120 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | UL 1685 UL Loading, FT1, IEC 60332-1-2 |
| NEC / UL Compliance | Article 725, Article 800, CM, PLTC |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Oil Resistance: Passes Oil Res I & II Per UL1277, Table 10.17 |
|---|
History
| Update and Revision | Revision Number: 0.384 Revision Date: 02-05-2026 |
|---|
