RS485, 2 Pr #22 Str TC, PE Ins, OS+TC Brd, LSZH-TS Jkt, CMG

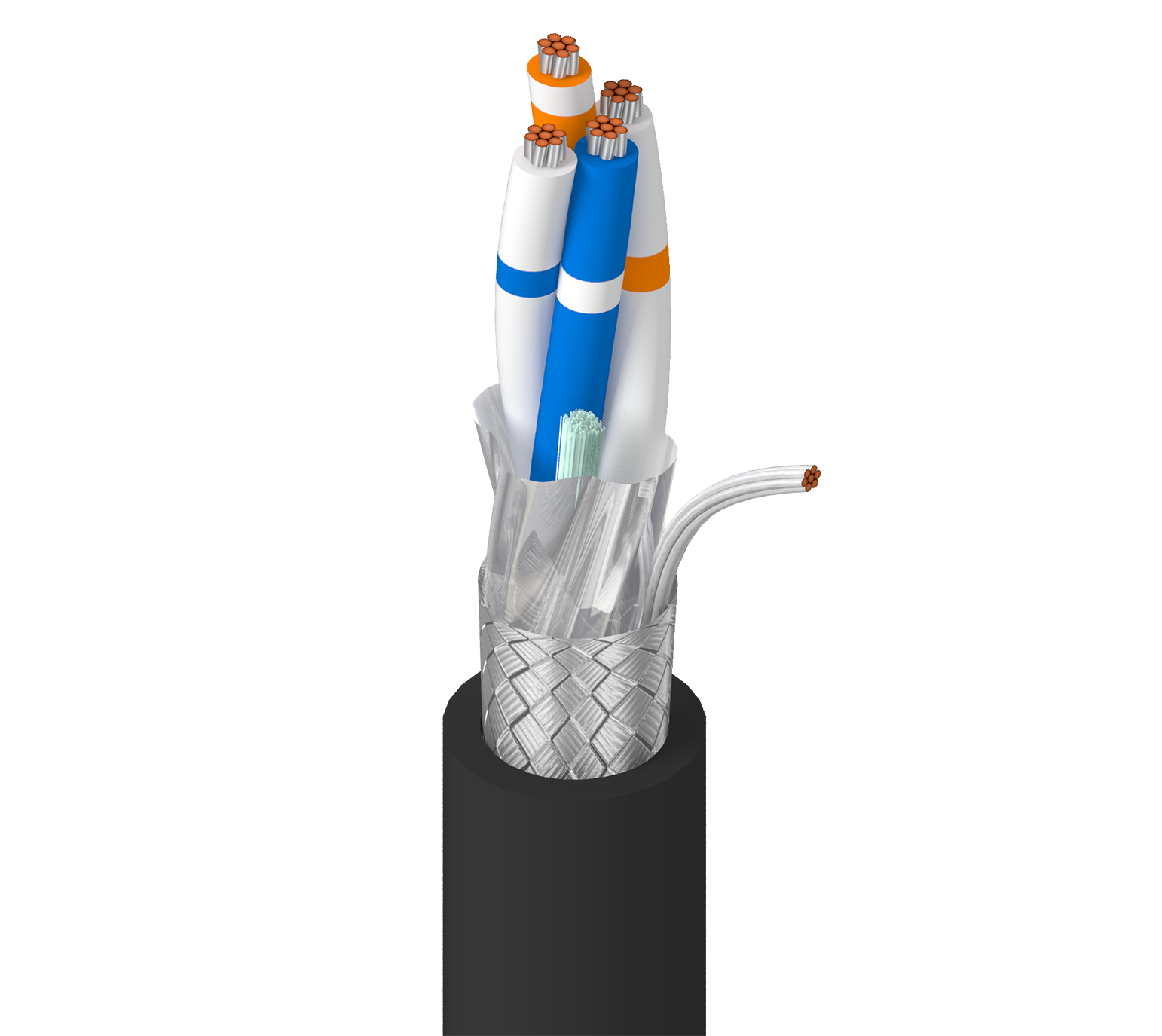

MarineTuff RS-485, 2 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, LSZH-TS Outer Jacket, CMG, PLTC,ABS (21-2090759-PDA-DUP)
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
3107Z is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 3107Z 0105000 | Black | 612825141723 | C N | Order online |
Specifications
Product Overview
| Suitable Applications | harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.444 in (11.3 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 2 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Thickness | 0.025 in (0.64 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe |
| Notes | HDPE |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC |
| Braid | Tinned Copper (TC) | 65% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) |
|---|---|
| Nom. Thickness | 0.100 in (2.54 mm) |
| Nom. Diameter | 0.444 in (11.3 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Characteristic Impedence | 120 Ohm |
| Nom. Velocity of Prop. | 78% |
High Frequency (Nominal/Typical)
| Element | Pair(s) |
|---|
Voltage
| UL Voltage Rating | 300 V (CMG, PLTC) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 82 lbs (37 kg) |
|---|---|
| Bulk Cable Weight | 110 lbs/1000ft (160 kg/km) |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C to +75°C |
Bend Radius
| Stationary Min. | 4.4 in (110 mm) |
|---|---|
| Installation Min. | 4.4 in (110 mm) |
Standards and Compliance
| Environmental Suitability | Outdoor, Sunlight Resistance |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading |
| NEC / UL Compliance | Article 725, Article 800, CMG, PLTC |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.313 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN. |
