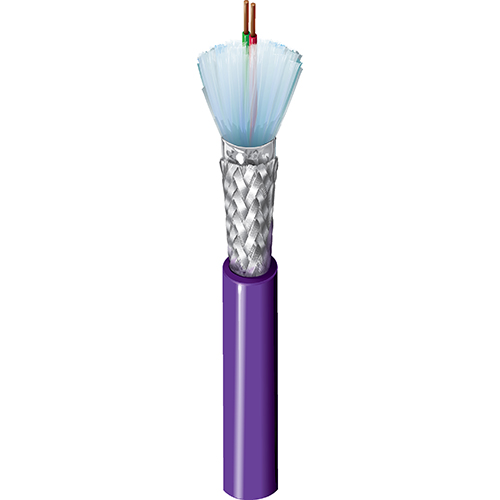

Profibus, 1 Pr #22 Sol BC, PE Ins, OS+TC Brd, LSZH-TP Jkt, PLTC-ST1 CMG-ST1 Profibus DP
Profibus, 1 Pair 22AWG (Solid) Bare Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, Low Smoke Zero Halogen Outer Jacket, PLTC-ST1 CMG-ST1 SUN RES Profibus DP
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
3079T is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 3079T 0105000 | Black | 612825140450 | Z | Order online |
Specifications
Product Overview
| Suitable Applications | shipboard, harsh environment, outdoors, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.430 in (10.9 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | Solid |
| Material | BC - Bare Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Thickness | 0.035 in (0.89 mm) |
| Color Code | Red & Green |
| Notes | Flame Retardant, Foam w/ skin |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 65% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.100 in (2.54 mm) |
| Nom. Diameter | 0.430 in (10.9 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Characteristic Impedence | 150 Ohm |
| Nom. Velocity of Prop. | 78% |
High Frequency (Nominal/Typical)
| Element | Pair(s) |
|---|
Voltage
| UL Voltage Rating | 300 V (CMG-ST1, PLTC-ST1) |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 87 lbs/1000ft (130 kg/km) |
|---|
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C to +75°C |
Standards and Compliance
| NEC / UL Compliance | Article 725, Article 800, CMG-ST1, PLTC-ST1 |
|---|
Product Notes
| Notes | Siemens Sinec L2 Cable |
|---|
History
| Update and Revision | Revision Number: 0.282 Revision Date: 02-20-2026 |
|---|---|
| Footnote | Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN. |
