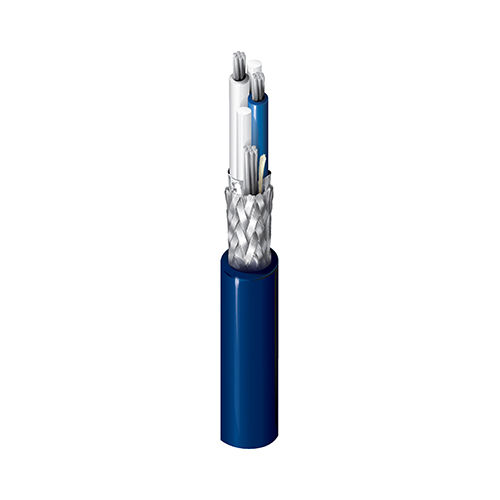

Blue Hose®, 1 Pr #18 Str TC, PP Ins, OS+TC Brd, LSZH Jkt, 600V TC-ER-ST1
Blue Hose® for Data Highway Plus, 1 Pair 18AWG (7x26) Tinned Copper, Polypropylene Insulation, Overall Beldfoil®+Tinned Copper Braid(55%) Shield, LSZH Outer Jacket, 600V TC-ER-ST1
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
3072T is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 3072T 0105000 | Black | 612825140115 | C | Order online |
Specifications
Product Overview
| Suitable Applications | shipboard, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.480 in (12.2 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | 7x26 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.025 in (0.64 mm) |
| Color Code | Blue & White |
| Notes | Flame Retardant |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
| Braid | Tinned Copper (TC) | 55% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.100 in (2.54 mm) |
| Nom. Diameter | 0.480 in (12.2 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Characteristic Impedence | 78 Ohm |
| Nom. Velocity of Prop. | 65% |
High Frequency (Nominal/Typical)
| Element | Pair(s) |
|---|
Voltage
| UL Voltage Rating | 600 V (TC-ER-ST1), 300 V (CMG-ST1, PLTC-ST1) |
|---|---|
| Voltage Rating | 150 V (ITC-ST1) |
Mechanical Characteristics
Temperature
| UL Temperature | 75°C Dry |
|---|
Standards and Compliance
| Environmental Suitability | Burial |
|---|---|
| NEC / UL Compliance | Article 336, Article 725, Article 727, Article 800, CMG-ST1, TC-ER-ST1, PLTC-ST1, ITC-ST1 |
| CEC / C(UL) Compliance | CMG-ST1. |
History
| Update and Revision | Revision Number: 0.166 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
