Product Number: 3072F

Blue Hose®, 1 Pr #18 Str TC, PP Ins, OS+TC Brd, PVC Jkt, 600V TC, PLTC

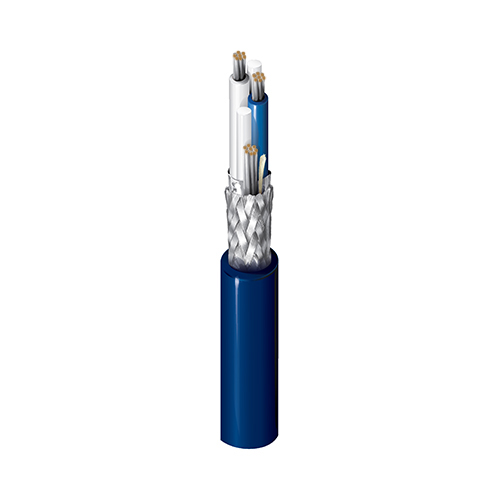

Blue Hose® for Data Highway Plus, 1 Pair 18AWG (7x26) Tinned Copper, PP Insulation, Overall Beldfoil®+Tinned Copper Braid(55%) Shield, PVC Outer Jacket, 600V TC, PLTC

Availability: Global
Status: Active
Orderable items: 4

Ships from and sold by A5 IT.

Part numbers

3072F is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
3072F C55500	Blue, Cairo	Reel	500 ft	612825140092	C N	Order online
3072F C551000	Blue, Cairo	Reel	1,000 ft	612825140054	C	Order online
3072F C555000	Blue, Cairo	Reel	5,000 ft	612825140108	C	Order online
3072F C5510000	Blue, Cairo	Reel	10,000 ft	612825140061	C N	Order online

Specifications

Product Overview

Suitable Applications	harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Construction Details

Outer Jacket1 Table Notes	Jacket OD +/- 0.006
Overall Cable Diameter (Nominal)	0.324 in (8.23 mm)

Conductor

Element	Pair(s)
No. of Elements	1
Size	18 AWG
Stranding	7x26
Material	TC - Tinned Copper

Insulation

Element	Pair(s)
Material	PP - Polypropylene
Nom. Thickness	0.025 in (0.64 mm)
Nom. Insulation Diameter	0.096 in (2.4 mm)
Color Code	Blue & White
Notes	Flame Retardant

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	20 AWG (7x28) TC
Braid	Tinned Copper (TC)	55%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.053 in (1.3 mm)
Nom. Diameter	0.324 in (8.23 mm)

Electrical Characteristics

Nom Outer Shield DCR	2.1 Ohm/1000ft (6.9 Ohm/km)

Electricals

Element	Pair(s)
Nom. Conductor DCR	7.2 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	19.5 pF/ft (64.0 pF/m)
Nom. Characteristic Impedence	78 Ohm
Nom. Delay	1.58 ns/ft
Nom. Inductance	0.12 μH/ft (0.39 μH/m)
Nom. Velocity of Prop.	65%
Max. Current	5.2 Amps per Conductor at 25oC

High Frequency (Nominal/Typical)

Element	Frequency [MHz]	Nom. Insertion Loss (Attenuation)
Pair(s)	1	0.52 dB/100ft
	10	1.98 dB/100ft
	50	3.78 dB/100ft
	100	5.35 dB/100ft
	200	7.57 dB/100ft
	400	10.7 dB/100ft

Voltage

UL Voltage Rating	600 V (TC), 300 V (CMG, PLTC)
Voltage Rating	150 V (ITC)

Mechanical Characteristics

Max. Pull Tension	85 lbs (39 kg)
Bulk Cable Weight	64 lbs/1000ft

Temperature

UL Temperature	75°C
Operating	-40°C to +75°C

Bend Radius

Stationary Min.	3 in (76 mm)
Installation Min.	4 in (100 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	UL 1685 FT4 Loading, FT4, IEEE 1202
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 336, Article 725, Article 727, Article 800, TC
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	P-MSHA-SC-182/7

Product Notes

Notes	For CPE jacketed version, order Part No. YM45044.

History

Update and Revision	Revision Number: 0.577 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.
