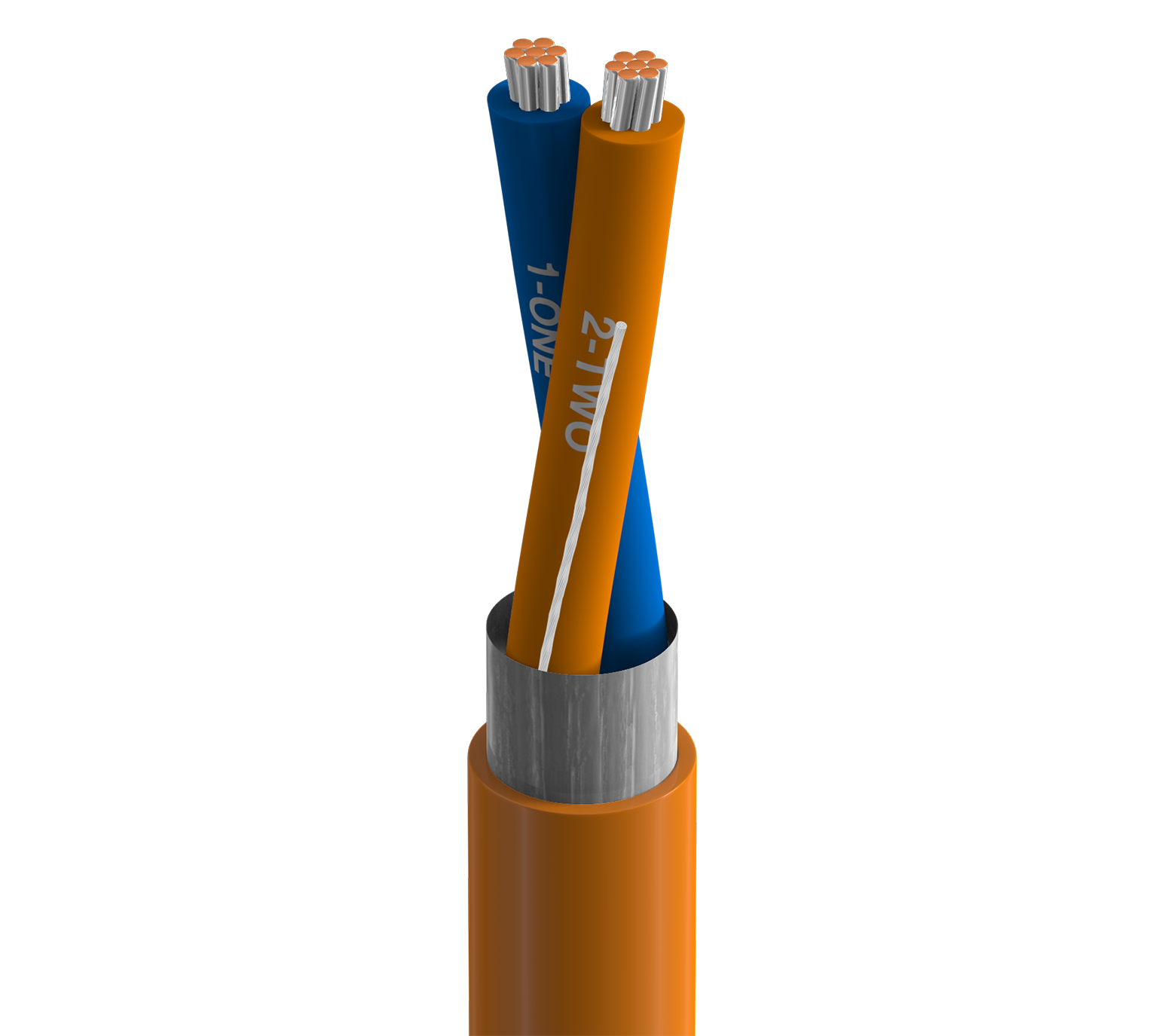

Fieldbus, 1 Pr #16 Str TC, XLPE Ins, OS, TPE Jkt, 600V TC
Fieldbus, 1 Pair 16AWG (7x24) Tinned Copper, XLPE Insulation, Overall Beldfoil® Shield, TPE Outer Jacket, 600V TC
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
2127A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 2127A 0061000 | Blue, Light | Reel | 1,000 ft | 612825129943 | Order online |
| 2127A 0065000 | Blue, Light | Reel | 5,000 ft | 612825129950 | Order online |
| 2127A 0035000 | Orange | Reel | 5,000 ft | 612825129936 | Order online |
Specifications
Product Overview
| Suitable Applications | harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.374 in (9.50 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 16 AWG |
| Stranding | 7x24 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | XLPE - Cross-Linked Polyethylene (Thermoset) |
| Nom. Thickness | 0.038 in (0.97 mm) |
| Nom. Insulation Diameter | 0.135 in (3.43 mm) |
| Color Code | Blue, Orange and Numbered |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 18 AWG (7x26) TC |
Outer Jacket
| Separator | Polyester Tape |
|---|---|
| Material | TPE - Thermoplastic Elastomer |
| Nom. Thickness | 0.047 in (1.2 mm) |
| Nom. Diameter | 0.374 in (9.50 mm) |
| Ripcord | Yes |
Electrical Characteristics
| Nom Outer Shield DCR | 5.1 Ohm/1000ft (17 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 4.5 Ohm/1000ft |
| Nom. Capacitance Cond-to-Shield | 22 pF/ft (72 pF/m) |
| Max. Capacitance Unbalance | 1.2 pF/ft |
| Nom. Characteristic Impedence | 100 Ohm |
| Nom. Inductance | 0.22 μH/ft (0.72 μH/m) |
| Nom. Velocity of Prop. | 64% |
| Max. Current | 11.6 Amps per Conductor at 25oC |
High Frequency (Nominal/Typical)
| Element | Pair(s) |
|---|---|
| Frequency [MHz] | 0.039 |
| Nom. Insertion Loss (Attenuation) | 0.065 dB/100ft |
Voltage
| UL Voltage Rating | 600 V |
|---|
Mechanical Characteristics
| Temperature Table Notes | -40C |
|---|---|
| Max. Pull Tension | 93 lbs (42 kg) |
| Bulk Cable Weight | 67 lbs/1000ft |
Temperature
| UL Temperature | 90°C |
|---|---|
| Operating | -40°C to +90°C Wet/Dry |
Bend Radius
| Stationary Min. | 3.75 in (95.3 mm) |
|---|---|
| Installation Min. | 3.75 in (95.3 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial |
|---|---|
| Flammability / Reaction to Fire | UL 1581 Vertical Tray, FT4, IEEE 1202, IEC 60332-3-24 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 336, ITC, PLTC |
| AWM Compliance | AWM I/II A/B |
| CEC / C(UL) Compliance | CIC, TC. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| Other Standard Compliance(s) | ISA/SP-50 Type A |
History
| Update and Revision | Revision Number: 0.563 Revision Date: 02-20-2026 |
|---|
