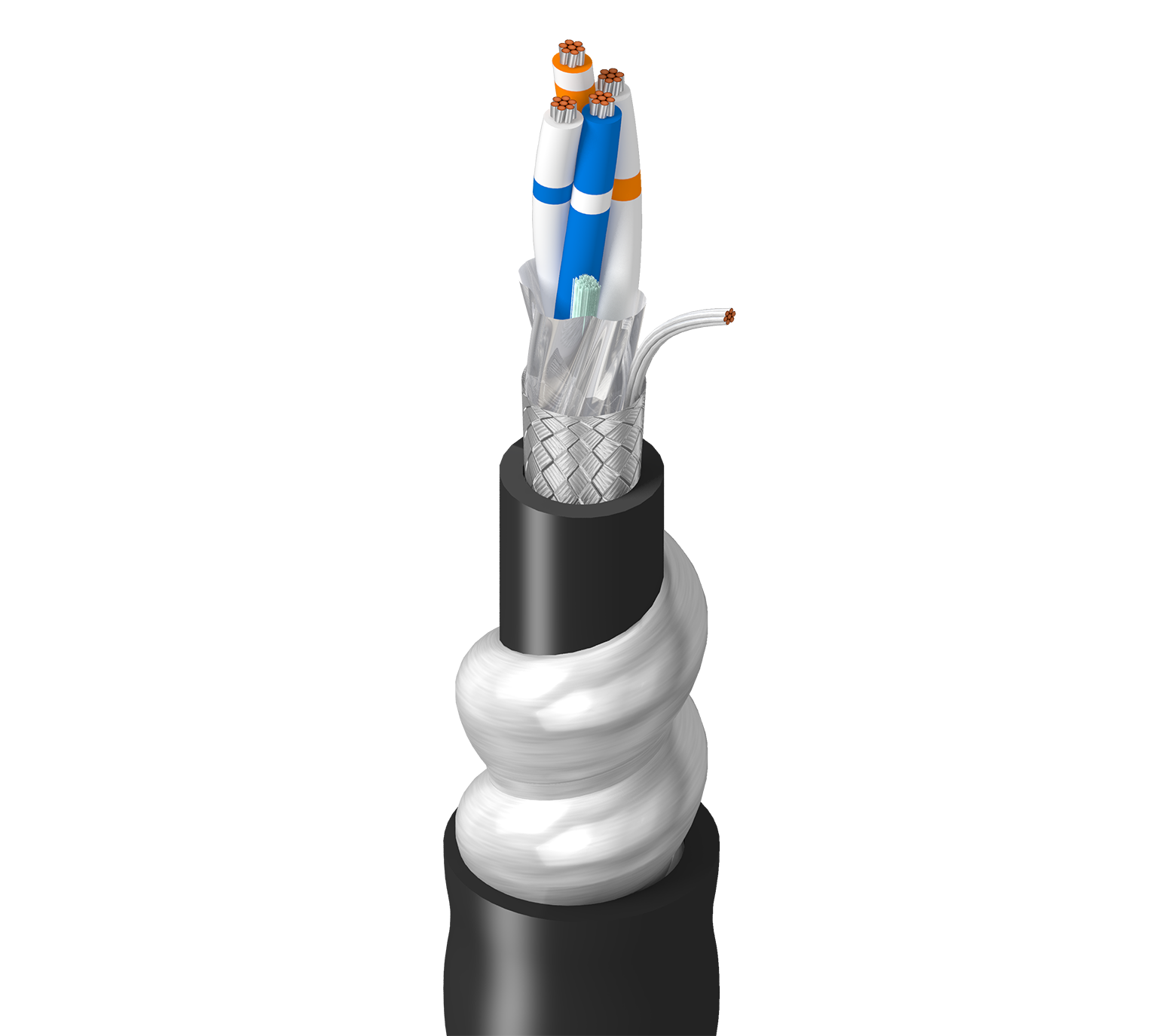

RS485, 2 Pr #22 Str TC, PE Ins, OS+TC Brd, PVC Jkt, CCA Armor, PVC Jkt, PLTC
RS-485, 2 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Inner Jacket, Continuous Corrugated Aluminum Armor, PVC Outer Jacket, CM, PLTC
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | exposure to rodent, crush, or cut through force, burial, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.665 in (16.9 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 2 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Thickness | 0.025 in (0.64 mm) |
| Nom. Insulation Diameter | 0.665 in (16.9 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe |
| Notes | HDPE |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC |
| Braid | Tinned Copper (TC) | 65% |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.053 in (1.3 mm) |
| Nom. Diameter | 0.350 in (8.89 mm) |
Armor
| Armor Type & Material | CCAA - Continuously Corrugated Aluminum Armor |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.055 in (1.4 mm) |
| Nom. Diameter | 0.665 in (16.9 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 15 Ohm/1000ft (49 Ohm/km) |
| Nom. Characteristic Impedence | 120 Ohm |
| Nom. Velocity of Prop. | 78% |
High Frequency (Nominal/Typical)
| Element | Pair(s) |
|---|
Voltage
| UL Voltage Rating | 300 V (CM, PLTC) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 200 lbs (91 kg) |
|---|---|
| Bulk Cable Weight | 194 kg/km (130 lbs/1000ft) |
Temperature
| UL Temperature | 105°C |
|---|---|
| Operating | -25°C to +105°C |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance, Aerial |
|---|---|
| Flammability / Reaction to Fire | UL1685 Vertical Tray Flame Test |
| NEC / UL Compliance | Article 725, Article 800, CM, PLTC |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.72 Revision Date: 05-31-2024 |
|---|
