RS232/422 Low Cap, #24-15pr, FPE, O/A Foil, PVC Jkt, CM, 100Ω

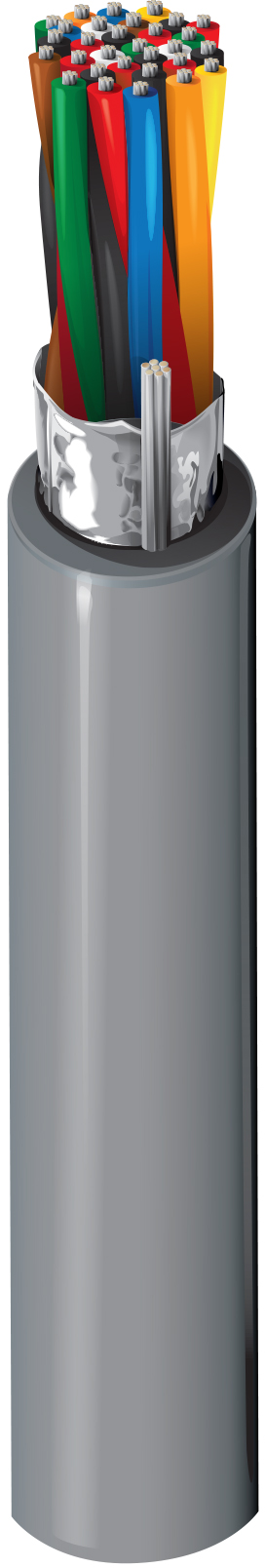

Computer EIA RS-232/422 Cable, 15-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
1425A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 1425A 0601000 | Chrome | 612825115137 | C | Order online |
| 1425A 060500 | Chrome | 612825115144 | C | Order online |
Specifications
Product Overview
| Suitable Applications | RS-232 extended distance applications; RS-423 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.455 in (11.6 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 15 |
| Size | 24 AWG |
| Stranding | 7x32 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Thickness | 0.0125 in (0.318 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe, Red/Blue Stripe & Blue/Red Stripe, Red/Orange Stripe & Orange/Red Stripe, Red/Green Stripe & Green/Red Stripe, Red/Brown Stripe & Brown/Red Stripe, Red/Gray Stripe & Gray/Red Stripe, Black/Blue Stripe & Blue/Black Stripe, Black/Orange Stripe & Orange/Black Stripe, Black/Green Stripe & Green/Black Stripe, Black/Brown Stripe & Brown/Black Stripe, Black/Gray Stripe & Gray/Black Stripe |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (7x32) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.040 in (1.0 mm) |
| Nom. Diameter | 0.455 in (11.6 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 11.2 Ohm/1000ft (36.7 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 24 Ohm/1000ft (79 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 13 pF/ft (43 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 22 pF/ft (72 pF/m) |
| Nom. Characteristic Impedence | 100 Ohm |
| Nom. Inductance | 0.213 μH/ft (0.699 μH/m) |
| Nom. Velocity of Prop. | 78% |
| Max. Current | 1.8 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V (CM), 30 V (UL AWM 2919) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 165 lbs (74.8 kg) |
|---|---|
| Bulk Cable Weight | 90 lbs/1000ft (130 kg/km) |
Temperature
| Operating | -20°C to +80°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | UL1685 UL Loading |
|---|---|
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2919 |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight. |
|---|
History
| Update and Revision | Revision Number: 0.334 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
